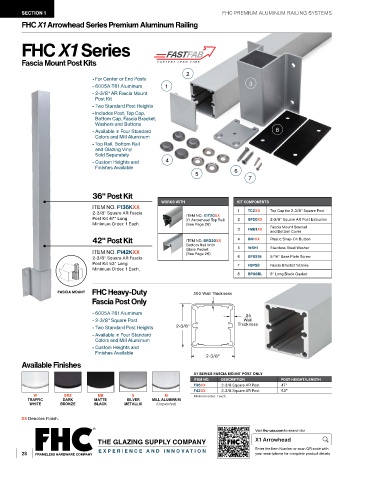

Page 30 - FHC-FARW26-Premium-Aluminum-Railing-Systems

SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
FHC X1 Arrowhead Series Premium Aluminum Railing

FHC X1 Series

Fascia Mount Post Kits
2
- For Center or End Posts
- 6005A-T61 Aluminum 1 3
- 2-3/8" AR Fascia Mount
Post Kit
- Two Standard Post Heights
- Includes Post, Top Cap,
Bottom Cap, Fascia Bracket,
Washers and Buttons
- Available in Four Standard 8
Colors and Mill Aluminum
- Top Rail, Bottom Rail
and Glazing Vinyl
Sold Separately
- Custom Heights and 4
Finishes Available
5 6
7

36" Post Kit
WORKS WITH KIT COMPONENTS
ITEM NO. F136KXX
2-3/8" Square AR Fascia 1 TC2XX Top Cap for 2-3/8" Square Post
Post Kit 47" Long ITEM NO. X1T20XX 2 SP20XX 2-3/8" Square AR Post Extrusion
X1 Arrowhead Top Rail
Minimum Order: 1 Each. (See Page 26)
3 FMB1XX Fascia Mount Bracket
and Bottom Cover
42" Post Kit ITEM NO. BRG20XX 4 BN1XX Plastic Snap-On Button
Bottom Rail With 5 WSH1 Stainless Steel Washer
ITEM NO. F142KXX Glass Pocket
(See Page 26)
2-3/8" Square AR Fascia 6 BPS516 5/16" Base Plate Screw
Post Kit 53" Long 7 FBPS8 Fascia Bracket Screws
Minimum Order: 1 Each.
8 BPG6BL 6" Long Black Gasket

FHC Heavy-Duty
FASCIA MOUNT .100 Wall Thickness
Fascia Post Only

- 6005A-T61 Aluminum .25
- 2-3/8" Square Post Wall
- Two Standard Post Heights 2-3/8" Thickness
- Available in Four Standard
Colors and Mill Aluminum
- Custom Heights and
Finishes Available
2-3/8"
Available Finishes

X1 SERIES FASCIA MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
F36XX 2-3/8 Square AR Post 47"
F42XX 2-3/8 Square AR Post 53"
W BRZ MB S M Minimum order: 1 each.
TRAFFIC DARK MATTE SILVER MILL ALUMINUM
WHITE BRONZE BLACK METALLIC (Unpainted)

XX Denotes Finish.
