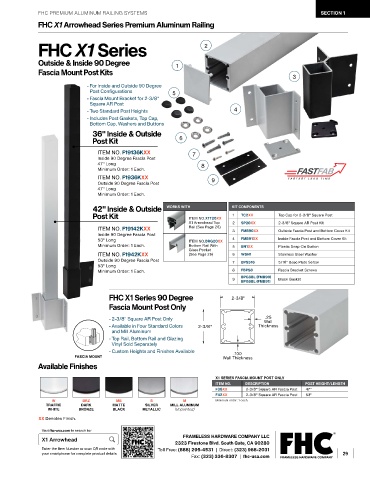

Page 31 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC X1 Arrowhead Series Premium Aluminum Railing

FHC X1 Series 2

Outside & Inside 90 Degree 1
Fascia Mount Post Kits
3
- For Inside and Outside 90 Degree
Post Configurations 5
- Fascia Mount Bracket for 2-3/8"
Square AR Post
- Two Standard Post Heights 4
- Includes Post Gaskets, Top Cap,
Bottom Cap, Washers and Buttons
36" Inside & Outside
Post Kit 6

ITEM NO. F19136KXX 7
Inside 90 Degree Fascia Post
47" Long 8
Minimum Order: 1 Each.
ITEM NO. F1936KXX 9
Outside 90 Degree Fascia Post
47" Long
Minimum Order: 1 Each.

42" Inside & Outside WORKS WITH KIT COMPONENTS
Post Kit ITEM NO.X1T20XX 1 TC2XX Top Cap for 2-3/8" Square Post
X1 Arrowhead Top 2 SP20XX 2-3/8" Square AR Post Kit
ITEM NO. F19142KXX Rail (See Page 26) 3 FMB90XX Outside Fascia Post and Bottom Cover Kit
Inside 90 Degree Fascia Post
53" Long ITEM NO.BRG20XX 4 FMB91XX Inside Fascia Post and Bottom Cover Kit
Minimum Order: 1 Each. Bottom Rail With 5 BN1XX Plastic Snap-On Button
Glass Pocket
ITEM NO. F1942KXX (See Page 26) 6 WSH1 Stainless Steel Washer
Outside 90 Degree Fascia Post 7 BPS516 5/16" Base Plate Screw
53" Long
Minimum Order: 1 Each. 8 FBPS8 Fascia Bracket Screws
9 BPG8BL (FMB90) Black Gasket
BPG6BL (FMB91)
FHC X1 Series 90 Degree 2-3/8"
Fascia Mount Post Only

.25
- 2-3/8" Square AR Post Only Wall
- Available in Four Standard Colors 2-3/8" Thickness
and Mill Aluminum
- Top Rail, Bottom Rail and Glazing
Vinyl Sold Separately
- Custom Heights and Finishes Available .100
FASCIA MOUNT Wall Thickness
Available Finishes

X1 SERIES FASCIA MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
F36XX 2-3/8" Square AR Fascia Post 47"
F42XX 2-3/8" Square AR Fascia Post 53"
W BRZ MB S M Minimum order: 1 each.
TRAFFIC DARK MATTE SILVER MILL ALUMINUM
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
