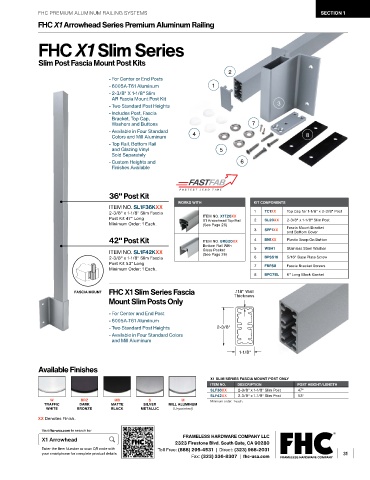

Page 33 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC X1 Arrowhead Series Premium Aluminum Railing

FHC X1 Slim Series

Slim Post Fascia Mount Post Kits
2
- For Center or End Posts
- 6005A-T61 Aluminum 1
- 2-3/8" X 1-1/8" Slim
AR Fascia Mount Post Kit
- Two Standard Post Heights 3
- Includes Post, Fascia
Bracket, Top Cap,
Washers and Buttons 7
- Available in Four Standard 4
Colors and Mill Aluminum 8
- Top Rail, Bottom Rail
and Glazing Vinyl 5
Sold Separately
- Custom Heights and 6
Finishes Available

36" Post Kit
WORKS WITH KIT COMPONENTS
ITEM NO. SL1F36KXX
2-3/8" x 1-1/8" Slim Fascia 1 TC1XX Top Cap for 1-1/8" x 2-3/8" Post
Post Kit 47" Long ITEM NO. X1T20XX 2 SL20XX 2-3/8" x 1-1/8" Slim Post
X1 Arrowhead Top Rail
Minimum Order: 1 Each. (See Page 26)
3 SPF1XX Fascia Mount Bracket
and Bottom Cover
42" Post Kit ITEM NO. BRG20XX 4 BN1XX Plastic Snap-On Button
Bottom Rail With
ITEM NO. SL1F42KXX Glass Pocket 5 WSH1 Stainless Steel Washer
2-3/8" x 1-1/8" Slim Fascia (See Page 26) 6 BPS516 5/16" Base Plate Screw
Post Kit 53" Long
Minimum Order: 1 Each. 7 FBPS8 Fascia Bracket Screws
8 BPG7BL 6" Long Black Gasket

FHC X1 Slim Series Fascia
.118" Wall
FASCIA MOUNT Thickness
Mount Slim Posts Only
- For Center and End Post
- 6005A-T61 Aluminum
- Two Standard Post Heights 2-3/8"
- Available in Four Standard Colors
and Mill Aluminum
1-1/8"

Available Finishes

X1 SLIM SERIES FASCIA MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
SLF36XX 2-3/8" x 1-1/8" Slim Post 47"
SLF42XX 2-3/8" x 1-1/8" Slim Post 53"
W BRZ MB S M Minimum order: 1 each.
TRAFFIC DARK MATTE SILVER MILL ALUMINUM
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
