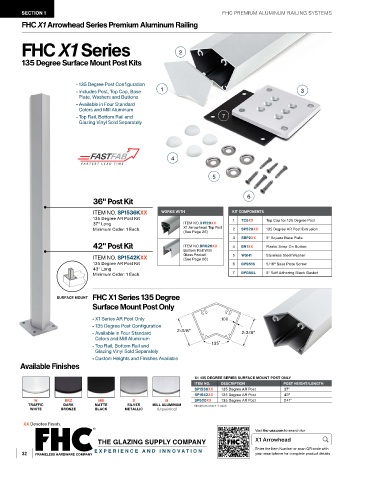

Page 34 - FHC-FARW26-Premium-Aluminum-Railing-Systems

SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
FHC X1 Arrowhead Series Premium Aluminum Railing

FHC X1 Series 2

135 Degree Surface Mount Post Kits

- 135 Degree Post Configuration
- Includes Post, Top Cap, Base 1 3
Plate, Washers and Buttons
- Available in Four Standard
Colors and Mill Aluminum
- Top Rail, Bottom Rail and 7
Glazing Vinyl Sold Separately

4

5

6
36" Post Kit
ITEM NO. SP1536KXX WORKS WITH KIT COMPONENTS
135 Degree AR Post Kit 1 TC5XX Top Cap for 135 Degree Post
37" Long ITEM NO.X1T20XX
Minimum Order: 1 Each. X1 Arrowhead Top Rail 2 SP520XX 135 Degree AR Post Extrusion
(See Page 26)
3 SBP2XX 5" Square Base Plate
42" Post Kit ITEM NO.BRG20XX 4 BN1XX Plastic Snap-On Button
Bottom Rail With
ITEM NO. SP1542KXX Glass Pocket 5 WSH1 Stainless Steel Washer
(See Page 26)
135 Degree AR Post Kit 6 BPS516 5/16" Base Plate Screw
43" Long
Minimum Order: 1 Each. 7 BPG5BL 5" Self Adhering Black Gasket

FHC X1 Series 135 Degree
SURFACE MOUNT
Surface Mount Post Only

- X1 Series AR Post Only .100
- 135 Degree Post Configuration
- Available in Four Standard 2-3/8" 2-3/8"
Colors and Mill Aluminum
- Top Rail, Bottom Rail and 135 º
Glazing Vinyl Sold Separately
- Custom Heights and Finishes Available
Available Finishes

X1 135 DEGREE SERIES SURFACE MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
SP1536XX 135 Degree AR Post 37"
SP1542XX 135 Degree AR Post 43"
W BRZ MB S M SP520XX 135 Degree AR Post 241"
TRAFFIC DARK MATTE SILVER MILL ALUMINUM Minimum order: 1 each.
WHITE BRONZE BLACK METALLIC (Unpainted)

XX Denotes Finish.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY X1 Arrowhead

32 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
