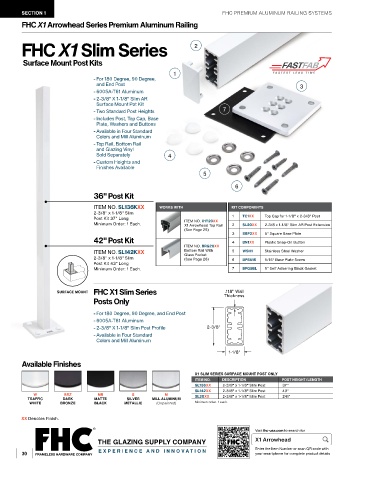

Page 32 - FHC-FARW26-Premium-Aluminum-Railing-Systems

SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
FHC X1 Arrowhead Series Premium Aluminum Railing

FHC X1 Slim Series 2

Surface Mount Post Kits
1
- For 180 Degree, 90 Degree,
and End Post 3
- 6005A-T61 Aluminum
- 2-3/8" X 1-1/8" Slim AR
Surface Mount Pot Kit
- Two Standard Post Heights 7
- Includes Post, Top Cap, Base
Plate, Washers and Buttons
- Available in Four Standard
Colors and Mill Aluminum
- Top Rail, Bottom Rail
and Glazing Vinyl
Sold Separately 4
- Custom Heights and
Finishes Available
5

6
36" Post Kit

ITEM NO. SL136KXX WORKS WITH KIT COMPONENTS
2-3/8" x 1-1/8" Slim
Post Kit 37" Long 1 TC1XX Top Cap for 1-1/8" x 2-3/8" Post
Minimum Order: 1 Each. ITEM NO. X1T20XX 2 SL20XX 2-3/8 x 1-1/8" Slim AR Post Extension
X1 Arrowhead Top Rail
(See Page 26)
3 SBP2XX 5" Square Base Plate
42" Post Kit 4 BN1XX Plastic Snap-On Button
ITEM NO. BRG20XX
ITEM NO. SL142KXX Bottom Rail With 5 WSH1 Stainless Steel Washer
Glass Pocket
2-3/8" x 1-1/8" Slim (See Page 26) 6 BPS516 5/16" Base Plate Screw
Post Kit 43" Long
Minimum Order: 1 Each. 7 BPG5BL 5" Self Adhering Black Gasket

FHC X1 Slim Series .118" Wall
SURFACE MOUNT Thickness
Posts Only

- For 180 Degree, 90 Degree, and End Post
- 6005A-T61 Aluminum
- 2-3/8" X 1-1/8" Slim Post Profile 2-3/8"
- Available in Four Standard
Colors and Mill Aluminum
1-1/8"
Available Finishes

X1 SLIM SERIES SURFACE MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
SL136XX 2-3/8" x 1-1/8" Slim Post 37"
SL142XX 2-3/8" x 1-1/8" Slim Post 43"
W BRZ MB S M SL20XX 2-3/8" x 1-1/8" Slim Post 241"
TRAFFIC DARK MATTE SILVER MILL ALUMINUM
WHITE BRONZE BLACK METALLIC (Unpainted) Minimum order: 1 each.

XX Denotes Finish.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY X1 Arrowhead

30 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
