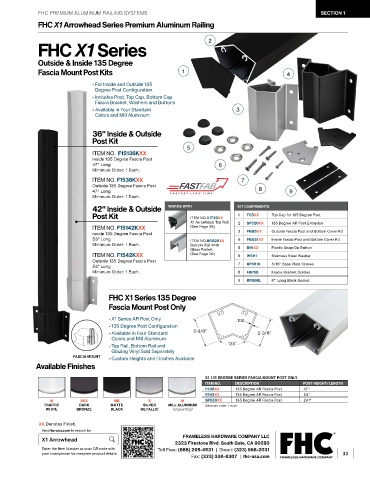

Page 35 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC X1 Arrowhead Series Premium Aluminum Railing

FHC X1 Series 2

Outside & Inside 135 Degree
Fascia Mount Post Kits 1 4

- For Inside and Outside 135
Degree Post Configuration
- Includes Post, Top Cap, Bottom Cap
Fascia Bracket, Washers and Buttons
- Available in Four Standard 3
Colors and Mill Aluminum

36" Inside & Outside
Post Kit
5
ITEM NO. F15136KXX
Inside 135 Degree Fascia Post
47" Long 6
Minimum Order: 1 Each.
ITEM NO. F1536KXX 7
Outside 135 Degree Fascia Post
47" Long 8 9
Minimum Order: 1 Each.
42" Inside & Outside WORKS WITH KIT COMPONENTS
Post Kit ITEM NO.X1T20XX 1 TC5XX Top Cap for 135 Degree Post
X1 Arrowhead Top Rail 2 SP520XX 135 Degree AR Post Extrusion
ITEM NO. F15142KXX (See Page 26)
Inside 135 Degree Fascia Post 3 FMB5XX Outside Fascia Post and Bottom Cover Kit
53" Long ITEM NO.BRG20XX 4 FMB51XX Inside Fascia Post and Bottom Cover Kit
Minimum Order: 1 Each. Bottom Rail With
Glass Pocket 5 BN1XX Plastic Snap-On Button
ITEM NO. F1542KXX (See Page 26) 6 WSH1 Stainless Steel Washer
Outside 135 Degree Fascia Post
53" Long 7 BPS516 5/16" Base Plate Screws
Minimum Order: 1 Each. 8 FBPS8 Fascia Bracket Screws
9 BPG6BL 6" Long Black Gasket

FHC X1 Series 135 Degree
Fascia Mount Post Only

- X1 Series AR Post Only .100
- 135 Degree Post Configuration
- Available in Four Standard 2-3/8" 2-3/8"
Colors and Mill Aluminum
- Top Rail, Bottom Rail and 135 º
Glazing Vinyl Sold Separately
FASCIA MOUNT - Custom Heights and Finishes Available
Available Finishes

X1 135 DEGREE SERIES FASCIA MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
F536XX 135 Degree AR Fascia Post 47"
F542XX 135 Degree AR Fascia Post 53"
W BRZ MB S M SP520XX 135 Degree AR Fascia Post 241"
TRAFFIC DARK MATTE SILVER MILL ALUMINUM Minimum order: 1 each.
WHITE BRONZE BLACK METALLIC (Unpainted)

XX Denotes Finish.
Visit fhc-usa.com to search for
X1 Arrowhead FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 33
Fax: (323) 336-8307 | fhc-usa.com
