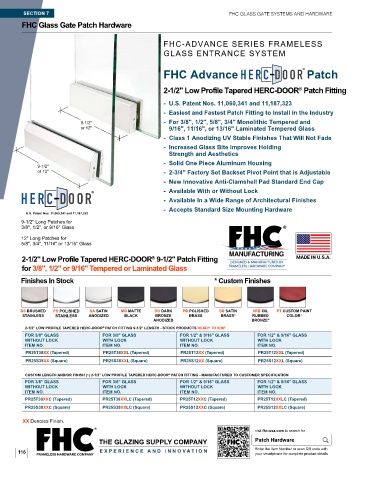

Page 130 - FHC FGR24R Architectural Railing Systems

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Glass Gate Patch Hardware

FHC-ADVANCE SERIES FRAMELESS
GLASS ENTRANCE SYSTEM

FHC Advance Patch

2-1/2" Low Profile Tapered HERC-DOOR Patch Fitting
®
- U.S. Patent Nos. 11,060,341 and 11,187,323
- Easiest and Fastest Patch Fitting to Install in the Industry

9-1/2" - For 3/8", 1/2", 5/8", 3/4" Monolithic Tempered and
or 12" 9/16", 11/16", or 13/16" Laminated Tempered Glass
- Class 1 Anodizing UV Stable Finishes That Will Not Fade
- Increased Glass Bite Improves Holding
Strength and Aesthetics
- Solid One Piece Aluminum Housing
9-1/2"
or 12" - 2-3/4" Factory Set Backset Pivot Point that is Adjustable
- New Innovative Anti-Clamshell Pad Standard End Cap
- Available With or Without Lock
- Available In a Wide Range of Architectural Finishes
- Accepts Standard Size Mounting Hardware
U.S. Patent Nos. 11,060,341 and 11,187,323
9-1/2" Long Patches for
3/8", 1/2", or 9/16" Glass

12" Long Patches for
5/8", 3/4", 11/16" or 13/16" Glass
2-1/2" Low Profile Tapered HERC-DOOR 9-1/2" Patch Fitting
®
for 3/8", 1/2" or 9/16" Tempered or Laminated Glass

Finishes In Stock * Custom Finishes

BS BRUSHED PS POLISHED SA SATIN MB MATTE DU DARK PB POLISHED SB SATIN 0RB OIL PT CUSTOM PAINT
STAINLESS STAINLESS ANODIZED BLACK BRONZE BRASS BRASS* RUBBED COLOR*
ANODIZED BRONZE*
2-1/2" LOW PROFILE TAPERED HERC-DOOR ® PATCH FITTING 9-1/2" LENGTH - STOCK PRODUCTS READY TO SHIP
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
PR25T38XX (Tapered) PR25T38XXL (Tapered) PR25T12XX (Tapered) PR25T12XXL (Tapered)
PR25S38XX (Square) PR25S38XXL (Square) PR25S12XX (Square) PR25S12XXL (Square)

CUSTOM LENGTH AND/OR FINISH ( ) 2-1/2" LOW PROFILE TAPERED HERC-DOOR ® PATCH FITTING - MANUFACTURED TO CUSTOMER SPECIFICATION
*
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
PR25T38XXC (Tapered) PR25T38XXLC (Tapered) PR25T12XXC (Tapered) PR25T12XXLC (Tapered)
PR25S38XXC (Square) PR25S38XXLC (Square) PR25S12XXC (Square) PR25S12XXLC (Square)
XX Denotes Finish.
