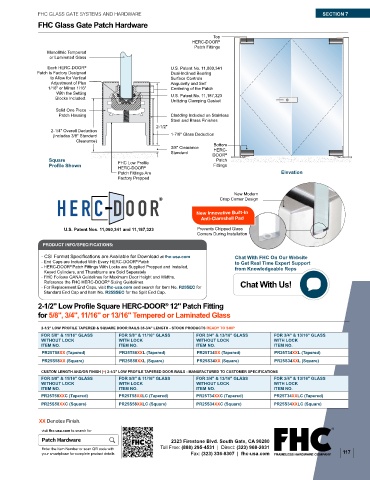

Page 131 - FHC FGR24R Architectural Railing Systems

FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Glass Gate Patch Hardware

Top
HERC-DOOR ®
Patch Fittings
Monolithic Tempered
or Laminated Glass
Each HERC-DOOR ® U.S. Patent No. 11,060,341
Patch is Factory Designed Dual-Inclined Bearing
to Allow for Vertical Surface Controls
Adjustment of Plus Angularity and Self
1/16" or Minus 1/16" Centering of the Patch
With the Setting
U.S. Patent No. 11,187,323
Blocks Included.
Unitizing Clamping Gasket
Solid One Piece
Patch Housing Cladding Included on Stainless
Steel and Brass Finishes
2-1/2"
2-1/4" Overall Deduction
1-7/8" Glass Deduction
(Includes 3/8" Standard
Clearance)
Bottom
3/8" Clearance HERC-
Standard
DOOR ®
Square Patch
Profile Shown FHC Low Profile Fittings
HERC-DOOR ®
Patch Fittings Are Elevation
Factory Prepped
New Modern
Crisp Corner Design
New Innovative Built-In
Anti-Clamshell Pad
U.S. Patent Nos. 11,060,341 and 11,187,323 Prevents Chipped Glass
Corners During Installation
PRODUCT INFO/SPECIFICATIONS:

- CSI Format Specifications are Available for Download at fhc-usa.com Chat With FHC On Our Website
®
- End Caps are Included With Every HERC-DOOR Patch to Get Real Time Expert Support
®
- HERC-DOOR Patch Fittings With Locks are Supplied Prepped and Installed, from Knowledgeable Reps
Keyed Cylinders, and Thumbturns are Sold Separately
- FHC Follows GANA Guidelines for Maximum Door Height and Widths.
®
Reference the FHC HERC-DOOR Sizing Guidelines. Chat With Us!
- For Replacement End Caps, visit fhc-usa.com and search for Item No. R25SEC for
Standard End Cap and Item No. R25SSEC for the Split End Cap.
2-1/2" Low Profile Square HERC-DOOR 12" Patch Fitting
®
for 5/8", 3/4", 11/16" or 13/16" Tempered or Laminated Glass
2-1/2" LOW PROFILE TAPERED & SQUARE DOOR RAILS 35-3/4" LENGTH - STOCK PRODUCTS READY TO SHIP
FOR 5/8" & 11/16" GLASS FOR 5/8" & 11/16" GLASS FOR 3/4" & 13/16" GLASS FOR 3/4" & 13/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
PR25T58XX (Tapered) PR25T58XXL (Tapered) PR25T34XX (Tapered) PR25T34XXL (Tapered)
PR25S58XX (Square) PR25S58XXL (Square) PR25S34XX (Square) PR25S34XXL (Square)
*
CUSTOM LENGTH AND/OR FINISH ( ) 2-1/2" LOW PROFILE TAPERED DOOR RAILS - MANUFACTURED TO CUSTOMER SPECIFICATIONS
FOR 5/8" & 11/16" GLASS FOR 5/8" & 11/16" GLASS FOR 3/4" & 13/16" GLASS FOR 3/4" & 13/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
PR25T58XXC (Tapered) PR25T58XXLC (Tapered) PR25T34XXC (Tapered) PR25T34XXLC (Tapered)
PR25S58XXC (Square) PR25S58XXLC (Square) PR25S34XXC (Square) PR25S34XXLC (Square)

XX Denotes Finish.
visit fhc-usa.com to search for
Patch Hardware 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 117
