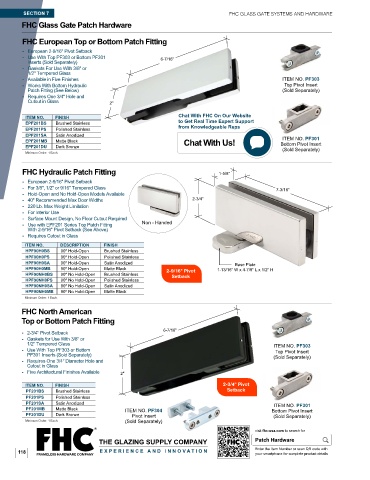

FHC Glass Gate Patch Hardware

FHC European Top or Bottom Patch Fitting
- European 2-9/16" Pivot Setback
- Use With Top PF303 or Bottom PF301 6-7/16"
Inserts (Sold Separately)
- Gaskets For Use With 3/8" or
1/2" Tempered Glass
- Available in Five Finishes ITEM NO. PF303
- Works With Bottom Hydraulic Top Pivot Insert
Patch Fitting (See Below) (Sold Separately)
- Requires One 3/4" Hole and
Cutout in Glass
2"
ITEM NO. FINISH Chat With FHC On Our Website
EPF201BS Brushed Stainless to Get Real Time Expert Support
from Knowledgeable Reps
EPF201PS Polished Stainless
EPF201SA Satin Anodized
EPF201MB Matte Black Chat With Us! ITEM NO. PF301
EPF201DU Dark Bronze Bottom Pivot Insert
(Sold Separately)
Minimum Order: 1 Each.
FHC Hydraulic Patch Fitting 1-5/8"

- European 2-9/16" Pivot Setback
- For 3/8", 1/2" or 9/16" Tempered Glass 7-3/16"
- Hold-Open and No Hold-Open Models Available
- 40" Recommended Max Door Widths 2-3/4"
- 220 Lb. Max Weight Limitation
- For Interior Use
- Surface Mount Design, No Floor Cutout Required
Non - Handed
- Use with EPF201 Series Top Patch Fitting
With 2-9/16" Pivot Setback (See Above)
- Requires Cutout in Glass
ITEM NO. DESCRIPTION FINISH
HPF90H0BS 90° Hold-Open Brushed Stainless
HPF90H0PS 90° Hold-Open Polished Stainless
HPF90H0SA 90° Hold-Open Satin Anodized Base Plate
HPF90H0MB 90° Hold-Open Matte Black 2-9/16" Pivot 1-13/16" W x 4-7/8" L x 1/2" H
HPF90NH0BS 90° No Hold-Open Brushed Stainless Setback
HPF90NH0PS 90° No Hold-Open Polished Stainless
HPF90NH0SA 90° No Hold-Open Satin Anodized
HPF90NH0MB 90° No Hold-Open Matte Black
Minimum Order: 1 Each.
FHC North American
Top or Bottom Patch Fitting

6-7/16"
- 2-3/4" Pivot Setback
- Gaskets for Use With 3/8" or
1/2" Tempered Glass ITEM NO. PF303
- Use With Top PF303 or Bottom Top Pivot Insert
PF301 Inserts (Sold Separately)
(Sold Separately)
- Requires One 3/4" Diameter Hole and
Cutout in Glass
- Five Architectural Finishes Available
2"
ITEM NO. FINISH 2-3/4" Pivot
PF201BS Brushed Stainless Setback
PF201PS Polished Stainless
PF201SA Satin Anodized ITEM NO. PF301
PF201MB Matte Black ITEM NO. PF304 Bottom Pivot Insert
PF201DU Dark Bronze Pivot Insert (Sold Separately)
Minimum Order: 1 Each. (Sold Separately)
