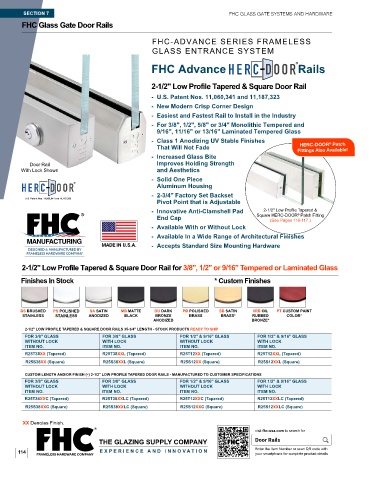

Page 128 - FHC FGR24R Architectural Railing Systems

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Glass Gate Door Rails

FHC-ADVANCE SERIES FRAMELESS
GLASS ENTRANCE SYSTEM

FHC Advance Rails

2-1/2" Low Profile Tapered & Square Door Rail
U.S. Patent Nos. 11,060,341 and 11,187,323
- U.S. Patent Nos. 11,060,341 and 11,187,323
- New Modern Crisp Corner Design
- Easiest and Fastest Rail to Install in the Industry
- For 3/8", 1/2", 5/8" or 3/4" Monolithic Tempered and
9/16", 11/16" or 13/16" Laminated Tempered Glass
- Class 1 Anodizing UV Stable Finishes
®
That Will Not Fade HERC-DOOR Patch
Fittings Also Available!
- Increased Glass Bite

Improves Holding Strength
Door Rail
With Lock Shown and Aesthetics
- Solid One Piece
Aluminum Housing
- 2-3/4" Factory Set Backset
U.S. Patent Nos. 11,060,341 and 11,187,323
Pivot Point that is Adjustable
- Innovative Anti-Clamshell Pad 2-1/2" Low Profile Tapered &
®
End Cap Square HERC-DOOR Patch Fitting
(See Pages 116-117 )
- Available With or Without Lock
- Available In a Wide Range of Architectural Finishes
- Accepts Standard Size Mounting Hardware

2-1/2" Low Profile Tapered & Square Door Rail for 3/8", 1/2" or 9/16" Tempered or Laminated Glass

Finishes In Stock * Custom Finishes

BS BRUSHED PS POLISHED SA SATIN MB MATTE DU DARK PB POLISHED SB SATIN 0RB OIL PT CUSTOM PAINT
STAINLESS STAINLESS ANODIZED BLACK BRONZE BRASS BRASS* RUBBED COLOR*
ANODIZED BRONZE*
2-1/2" LOW PROFILE TAPERED & SQUARE DOOR RAILS 35-3/4" LENGTH - STOCK PRODUCTS READY TO SHIP
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
R25T38XX (Tapered) R25T38XXL (Tapered) R25T12XX (Tapered) R25T12XXL (Tapered)
R25S38XX (Square) R25S38XXL (Square) R25S12XX (Square) R25S12XXL (Square)

CUSTOM LENGTH AND/OR FINISH ( ) 2-1/2" LOW PROFILE TAPERED DOOR RAILS - MANUFACTURED TO CUSTOMER SPECIFICATIONS
*
FOR 3/8" GLASS FOR 3/8" GLASS FOR 1/2" & 9/16" GLASS FOR 1/2" & 9/16" GLASS
WITHOUT LOCK WITH LOCK WITHOUT LOCK WITH LOCK
ITEM NO. ITEM NO. ITEM NO. ITEM NO.
R25T38XXC (Tapered) R25T38XXLC (Tapered) R25T12XXC (Tapered) R25T12XXLC (Tapered)
R25S38XXC (Square) R25S38XXLC (Square) R25S12XXC (Square) R25S12XXLC (Square)

XX Denotes Finish.
visit fhc-usa.com to search for
visit fhc-usa.com to search for
Door Rails
THE GLAZING SUPPLY COMPANY Door Rails
114 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
