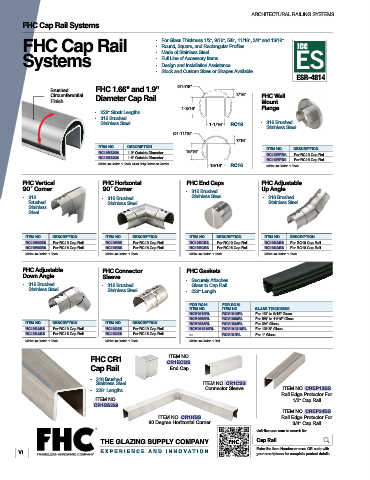

Page 8 - FHC FGR24R Architectural Railing Systems

ARCHITECTURAL RAILING SYSTEMS
FHC Cap Rail Systems

FHC Cap Rail - For Glass Thickness 1/2", 9/16", 5/8", 11/16", 3/4" and 13/16" ICC
- Round, Square, and Rectangular Profiles
Systems - Made of Stainless Steel
- Full Line of Accessory Items
- Design and Installation Assistance
- Stock and Custom Sizes or Shapes Available
ESR-4814
FHC 1.66" and 1.9" Ø1-7/8"
Brushed
Circumferential Diameter Cap Rail 7/16" FHC Wall
Finish Mount
1-3/16" Flange
- 228" Stock Lengths
- 316 Brushed
Stainless Steel 1-1/16" RC19 - 316 Brushed
Stainless Steel
Ø1-11/16"
7/16"
ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
RC19BS228 1.9" Outside Diameter 15/16" RC19WBS For RC19 Cap Rail
RC16BS228 1.6" Outside Diameter RC16WBS For RC16 Cap Rail
Minimum Order: 1 Each. Must Ship Common Carrier. RC16
15/16" Minimum Order: 1 Each.
FHC Vertical FHC Horizontal FHC End Caps FHC Adjustable
90˚ Corner 90˚ Corner - 316 Brushed Up Angle
- 316 - 316 Brushed Stainless Steel - 316 Brushed
Brushed Stainless Steel Stainless Steel
Stainless
Steel

ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
RC19V90BS For RC19 Cap Rail RC19HBS For RC19 Cap Rail RC19ECBS For RC19 Cap Rail RC19UABS For RC19 Cap Rail
RC16V90BS For RC16 Cap Rail RC16HBS For RC16 Cap Rail RC16ECBS For RC16 Cap Rail RC16UABS For RC16 Cap Rail
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Adjustable FHC Connector FHC Gaskets
Down Angle Sleeve
- Securely Attaches
- 316 Brushed - 316 Brushed Glass to Cap Rail
Stainless Steel Stainless Steel - 228" Length

FOR RC16 FOR RC19
ITEM NO. ITEM NO. GLASS THICKNESS
RCV1612RL RCV1912RL For 1/2" to 9/16" Glass
RCV1658RL RCV1958RL For 5/8" to 11/16" Glass
ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION RCV1634RL RCV1934RL For 3/4" Glass
RC19DABS For RC19 Cap Rail RC19CSS For RC19 Cap Rail RCV161316RL RCV191316RL For 13/16" Glass
RC16DABS For RC16 Cap Rail RC16CSS For RC16 Cap Rail --- RCV191RL For 1" Glass
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Roll.

FHC CR1 CR1BS228
ITEM NO.
Cap Rail End Cap

- 316 Brushed
Stainless Steel ITEM NO. CR1ECBS
- 228" Lengths Connector Sleeve ITEM NO. CREP12BS
Rail Edge Protector For
ITEM NO. 1/2" Cap Rail
CR1BS228
ITEM NO. CREP34BS
ITEM NO. CR1HBS Rail Edge Protector For
90 Degree Horizontal Corner 3/4" Cap Rail
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Cap Rail

VIII EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
