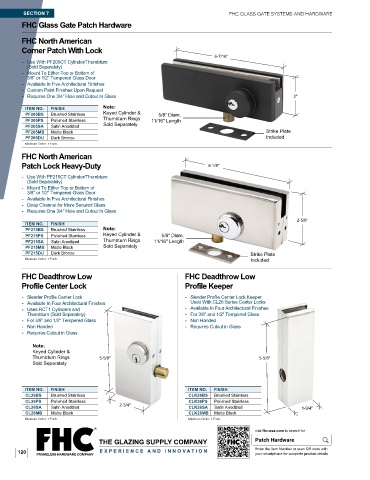

Page 134 - FHC FGR24R Architectural Railing Systems

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Glass Gate Patch Hardware

FHC North American
Corner Patch With Lock
6-7/16"
- Use With PF205CT Cylinder/Thumbturn
(Sold Separately)
- Mount To Either Top or Bottom of
3/8" or 1/2" Tempered Glass Door
- Available In Five Architectural Finishes
- Custom Paint Finishes Upon Request
- Requires One 3/4" Hole and Cutout In Glass 2"
ITEM NO. FINISH Note:
PF205BS Brushed Stainless Keyed Cylinder & 5/8" Diam.
PF205PS Polished Stainless Thumbturn Rings 11/16" Length
PF205SA Satin Anodized Sold Separately
PF205MB Matte Black Strike Plate
PF205DU Dark Bronze Included
Minimum Order: 1 Each.
FHC North American
Patch Lock Heavy-Duty 6-1/8"

- Use With PF215CT Cylinder/Thumbturn
(Sold Separately)
- Mount To Either Top or Bottom of
3/8" or 1/2" Tempered Glass Door
- Available In Five Architectural Finishes
- Deep Channel for More Secured Glass
- Requires One 3/4" Hole and Cutout In Glass
2-5/8"
ITEM NO. FINISH
PF215BS Brushed Stainless Note:
PF215PS Polished Stainless Keyed Cylinder & 5/8" Diam.
PF215SA Satin Anodized Thumbturn Rings 11/16" Length
PF215MB Matte Black Sold Separately
PF215DU Dark Bronze Strike Plate
Minimum Order: 1 Each. Included

FHC Deadthrow Low FHC Deadthrow Low
Profile Center Lock Profile Keeper

- Slender Profile Center Lock - Slender Profile Center Lock Keeper
- Available In Four Architectural Finishes Used With CL26 Series Center Locks
- Uses RCT1 Cylinders and - Available In Four Architectural Finishes
Thumbturn (Sold Separately) - For 3/8" and 1/2" Tempered Glass
- For 3/8" and 1/2" Tempered Glass - Non Handed
- Non Handed - Requires Cutout in Glass
- Requires Cutout in Glass

Note:
Keyed Cylinder &
Thumbturn Rings 5-5/8" 5-5/8"
Sold Separately

ITEM NO. FINISH ITEM NO. FINISH
CL26BS Brushed Stainless CLK26BS Brushed Stainless
CL26PS Polished Stainless CLK26PS Polished Stainless
CL26SA Satin Anodized 2-3/4" CLK26SA Satin Anodized 1-3/4"
CL26MB Matte Black CLK26MB Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Patch Hardware

120 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
