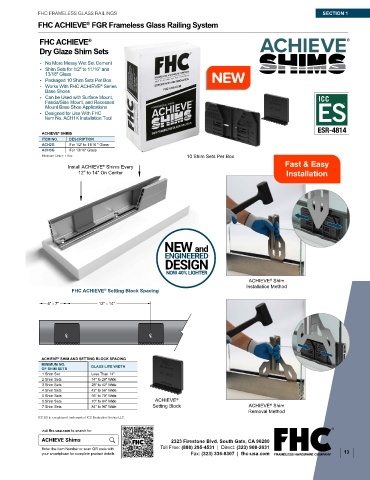

FHC ACHIEVE FGR Frameless Glass Railing System
®

FHC ACHIEVE
®
Dry Glaze Shim Sets

- No More Messy Wet Set Cement
- Shim Sets for 1/2" to 11/16" and
13/16" Glass
- Packaged 10 Shim Sets Per Box
®
- Works With FHC ACHIEVE Series
Base Shoes
- Can be Used with Surface Mount, ICC
Fascia/Side Mount, and Recessed
Mount Base Shoe Applications
- Designed for Use With FHC
Item No. ACH1K Installation Tool
ESR-4814
ACHIEVE ® SHIMS
ITEM NO. DESCRIPTION
ACH2G For 1/2" to 11/16 " Glass
ACH3G For 13/16" Glass
Minimum Order: 1 Box. 10 Shim Sets Per Box
Fast & Easy
®
Install ACHIEVE Shims Every
12" to 14" On Center Installation

NEW and
ENGINEERED
DESIGN

NOW 40% LIGHTER
ACHIEVE Shim
®
Installation Method
FHC ACHIEVE Setting Block Spacing
®
4" - 7" 12" - 14"

L C L C

ACHIEVE ® SHIM AND SETTING BLOCK SPACING
MINIMUM NO.
OF SHIM SETS GLASS LITE WIDTH
1 Shim Set Less Than 14"
2 Shim Sets 14" to 28" Wide
3 Shim Sets 28" to 42" Wide
4 Shim Sets 42" to 56" Wide
5 Shim Sets 56" to 70" Wide
®
6 Shim Sets 70" to 84" Wide ACHIEVE
®
7 Shim Sets 84" to 96" Wide Setting Block ACHIEVE Shim
Removal Method
