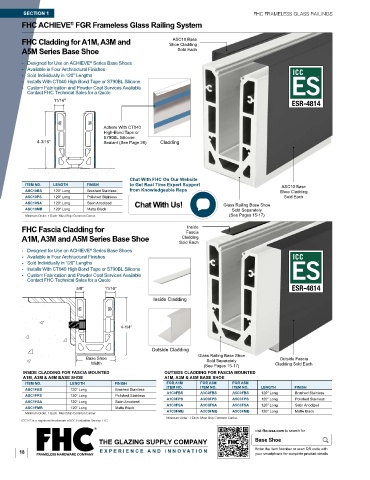

Page 32 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC ACHIEVE FGR Frameless Glass Railing System
®

FHC Cladding for A1M, A3M and Shoe Cladding
ASC10 Base
A5M Series Base Shoe Sold Each

®
- Designed for Use on ACHIEVE Series Base Shoes
- Available in Four Architectural Finishes ICC
- Sold Individually in 120" Lengths
- Installs With CT040 High Bond Tape or S790BL Silicone
- Custom Fabrication and Powder Coat Services Available
Contact FHC Technical Sales for a Quote
11/16"
ESR-4814

Adhere With CT040
High-Bond Tape or
S790BL Silicone
4-3/16" Sealant (See Page 28) Cladding

Chat With FHC On Our Website
ITEM NO. LENGTH FINISH to Get Real Time Expert Support ASC10 Base
ASC10BS 120" Long Brushed Stainless from Knowledgeable Reps Shoe Cladding
ASC10PS 120" Long Polished Stainless Sold Each
ASC10SA 120" Long Satin Anodized Chat With Us! Glass Railing Base Shoe
ASC10MB 120" Long Matte Black Sold Separately
Minimum Order: 1 Each. Must Ship Common Carrier. (See Pages 15-17)
FHC Fascia Cladding for Fascia
Inside
A1M, A3M and A5M Series Base Shoe Cladding
Sold Each
®
- Designed for Use on ACHIEVE Series Base Shoes
- Available in Four Architectural Finishes ICC
- Sold Individually in 120" Lengths
- Installs With CT040 High Bond Tape or S790BL Silicone
- Custom Fabrication and Powder Coat Services Available
Contact FHC Technical Sales for a Quote
5/8" 11/16" ESR-4814
Inside Cladding

4-1/4"

Outside Cladding
Glass Railing Base Shoe
Base Shoe Sold Separately Outside Fascia
Width Cladding Sold Each
(See Pages 15-17)
INSIDE CLADDING FOR FASCIA MOUNTED OUTSIDE CLADDING FOR FASCIA MOUNTED
A1M, A3M & A5M BASE SHOE A1M, A3M & A5M BASE SHOE
ITEM NO. LENGTH FINISH FOR A1M FOR A3M FOR A5M
ASC1FBS 120" Long Brushed Stainless ITEM NO. ITEM NO. ITEM NO. LENGTH FINISH
A1C0FBS A3C0FBS A5C0FBS 120" Long Brushed Stainless
ASC1FPS 120" Long Polished Stainless
A1C0FPS A3C0FPS A5C0FPS 120" Long Polished Stainless
ASC1FSA 120" Long Satin Anodized
ASC1FMB 120" Long Matte Black A1C0FSA A3C0FSA A5C0FSA 120" Long Satin Anodized
A1C0FMB A3C0FMB A5C0FMB 120" Long Matte Black
Minimum Order: 1 Each. Must Ship Common Carrier.
Minimum Order: 1 Each. Must Ship Common Carrier.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
