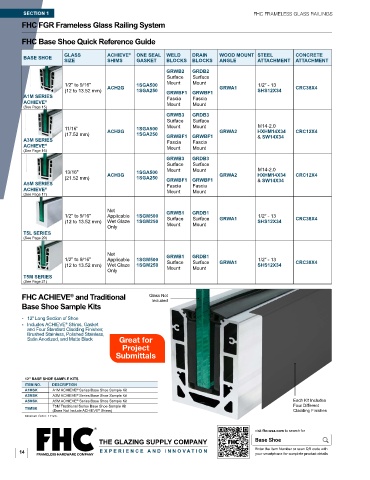

Page 28 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC FGR Frameless Glass Railing System

FHC Base Shoe Quick Reference Guide

®
BASE SHOE GLASS ACHIEVE ONE SEAL WELD DRAIN WOOD MOUNT STEEL CONCRETE
SIZE SHIMS GASKET BLOCKS BLOCKS ANGLE ATTACHMENT ATTACHMENT
GRWB2 GRDB2
Surface Surface
1/2" to 9/16" ACH2G 1SGA500 Mount Mount GRWA1 1/2" - 13 CRC38X4
(12 to 13.52 mm) 1SGA250 GRWBF1 GRWBF1 SHS12X34
A1M SERIES Fascia Fascia
®
ACHIEVE Mount Mount
(See Page 15)
GRWB3 GRDB3
Surface Surface
M14-2.0
11/16" ACH2G 1SGA500 Mount Mount GRWA2 HXHM14X34 CRC12X4
(17.52 mm) 1SGA250 GRWBF1 GRWBF1 & SW14X34
A3M SERIES Fascia Fascia
ACHIEVE Mount Mount
®
(See Page 16)
GRWB3 GRDB3
Surface Surface
M14-2.0
13/16" ACH3G 1SGA500 Mount Mount GRWA2 HXHM14X34 CRC12X4
(21.52 mm) 1SGA250 GRWBF1 GRWBF1 & SW14X34
A5M SERIES Fascia Fascia
®
ACHIEVE Mount Mount
(See Page 17)
Not GRWB1 GRDB1
1/2" to 9/16" Applicable 1SGM500 GRWA1 1/2" - 13 CRC38X4
(12 to 13.52 mm) Wet Glaze 1SGM250 Surface Surface SHS12X34
Mount Mount
Only
T5L SERIES
(See Page 20)

Not GRWB1 GRDB1
1/2" to 9/16" Applicable 1SGM500 GRWA1 1/2" - 13 CRC38X4
(12 to 13.52 mm) Wet Glaze 1SGM250 Surface Surface SHS12X34
Mount Mount
Only
T5M SERIES
(See Page 21)
FHC ACHIEVE and Traditional Glass Not
®
Included
Base Shoe Sample Kits
- 12" Long Section of Shoe
®
- Includes ACHIEVE Shims, Gasket
and Four Standard Cladding Finishes;
Brushed Stainless, Polished Stainless,
Satin Anodized, and Matte Black Great for
Project
Submittals

12" BASE SHOE SAMPLE KITS
ITEM NO. DESCRIPTION
A1MSK A1M ACHIEVE ® Series Base Shoe Sample Kit
A3MSK A3M ACHIEVE ® Series Base Shoe Sample Kit
A5MSK A5M ACHIEVE ® Series Base Shoe Sample Kit Each Kit Includes
T5MSK T5M Traditional Series Base Shoe Sample Kit Four Different
(Does Not Include ACHIEVE ® Shims) Cladding Finishes
Minimum Order: 1 Each.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Shoe

14 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
