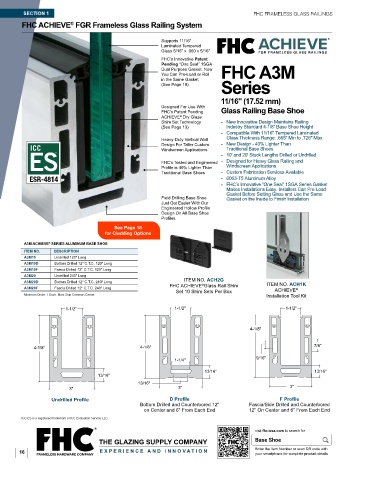

Page 30 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC ACHIEVE FGR Frameless Glass Railing System
®

Supports 11/16" ®
Laminated Tempered
Glass 5/16" x .060 x 5/16"
FHC’s Innovative Patent
Pending “One Seal” 1SGA
Dual Purpose Gasket. Now FHC A3M
You Can Pre-Load or Roll
Series
in the Same Gasket
(See Page 19)
11/16" (17.52 mm)
Designed For Use With
FHC’s Patent Pending Glass Railing Base Shoe
®
ACHIEVE Dry Glaze
Shim Set Technology - New Innovative Design Maintains Railing
(See Page 13) Industry Standard 4-1/8” Base Shoe Height
- Compatible With 11/16" Tempered Laminated

Glass Thickness Range: .665" Min to .726" Max
Heavy-Duty Vertical Wall

Design For Taller Custom - New Design - 40% Lighter Than
ICC Windscreen Applications Traditional Base Shoes
- 10' and 20' Stock Lengths Drilled or Undrilled

FHC’s Tested and Engineered - Designed for Heavy Glass Railing and
Profile is 40% Lighter Than Windscreen Applications
Traditional Base Shoes - Custom Fabrication Services Available
ESR-4814 - 6063-T5 Aluminum Alloy
- FHC’s Innovative “One Seal” 1SGA Series Gasket
Makes Installations Easy. Installers Can Pre-Load
Gasket Before Setting Glass and Use the Same
Field Drilling Base Shoe Gasket on the Inside to Finish Installation
Just Got Easier With Our
Engineered Hollow Profile
Design On All Base Shoe
Profiles
See Page 18
for Cladding Options
A3M ACHIEVE ® SERIES ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION
A3M10 Undrilled 120" Long
A3M10D Bottom Drilled 12" C.T.C. 120" Long
A3M10F Fascia Drilled 12" C.T.C. 120" Long
A3M20 Undrilled 240" Long
A3M20D Bottom Drilled 12" C.T.C. 240" Long ITEM NO. ACH2G
®
FHC ACHIEVE Glass Rail Shim ITEM NO. ACH1K
A3M20F Fascia Drilled 12" C.T.C. 240" Long ®
Set 10 Shim Sets Per Box ACHIEVE
Minimum Order: 1 Each. Must Ship Common Carrier. Installation Tool Kit
1-1/2" 1-1/2" 1-1/2"

4-1/8"

4-1/8" 4-1/8" 7/8"

9/16"
1-1/4"
13/16" 13/16"
13/16"
13/16"
3" 3" 3"
Undrilled Profile D Profile F Profile
Bottom Drilled and Counterbored 12" Fascia/Side Drilled and Counterbored
on Center and 6" From Each End 12" On Center and 6" From Each End
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Shoe

16 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
