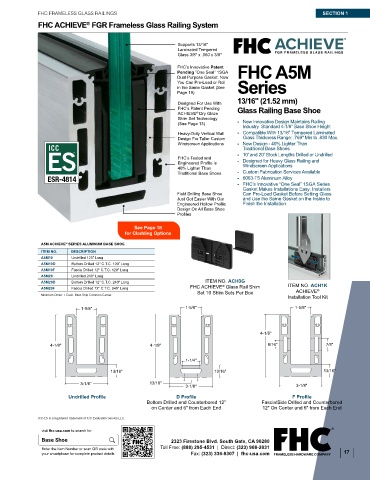

Page 31 - FHC FGR24R Architectural Railing Systems

FHC FRAMELESS GLASS RAILINGS SECTION 1
FHC ACHIEVE FGR Frameless Glass Railing System
®

®
Supports 13/16"
Laminated Tempered
Glass 3/8" x .060 x 3/8"
Dual Purpose Gasket. Now FHC A5M
FHC’s Innovative Patent
Pending “One Seal” 1SGA
You Can Pre-Load or Roll
in the Same Gasket (See Series
Page 19)
13/16" (21.52 mm)
Designed For Use With
FHC’s Patent Pending Glass Railing Base Shoe
ACHIEVE Dry Glaze
®
Shim Set Technology
- New Innovative Design Maintains Railing
(See Page 13)
Industry Standard 4-1/8” Base Shoe Height

Heavy-Duty Vertical Wall - Compatible With 13/16" Tempered Laminated
Design For Taller Custom Glass Thickness Range: .769" Min to .830 Max.
Windscreen Applications - New Design - 40% Lighter Than
ICC Traditional Base Shoes
- 10' and 20' Stock Lengths Drilled or Undrilled
FHC’s Tested and
- Designed for Heavy Glass Railing and
Engineered Profile is
Windscreen Applications
40% Lighter Than
Traditional Base Shoes - Custom Fabrication Services Available
ESR-4814 - 6063-T5 Aluminum Alloy
- FHC’s Innovative “One Seal” 1SGA Series
Gasket Makes Installations Easy. Installers
Field Drilling Base Shoe Can Pre-Load Gasket Before Setting Glass
Just Got Easier With Our and Use the Same Gasket on the Inside to
Engineered Hollow Profile Finish the Installation
Design On All Base Shoe
Profiles
See Page 18
for Cladding Options
A5M ACHIEVE ® SERIES ALUMINUM BASE SHOE
ITEM NO. DESCRIPTION
A5M10 Undrilled 120" Long
A5M10D Bottom Drilled 12" C.T.C. 120” Long
A5M10F Fascia Drilled 12" C.T.C. 120” Long
A5M20 Undrilled 240" Long
A5M20D Bottom Drilled 12" C.T.C. 240" Long ITEM NO. ACH3G ITEM NO. ACH1K
®
A5M20F Fascia Drilled 12" C.T.C. 240” Long FHC ACHIEVE Glass Rail Shim ®
Set 10 Shim Sets Per Box ACHIEVE
Minimum Order: 1 Each. Must Ship Common Carrier.
Installation Tool Kit
1-5/8" 1-5/8" 1-5/8"

4-1/8"

4-1/8" 4-1/8" 9/16" 7/8"

1-1/4"
13/16" 13/16" 13/16"

3-1/8" 13/16"
3-1/8" 3-1/8"
Undrilled Profile D Profile F Profile
Bottom Drilled and Counterbored 12" Fascia/Side Drilled and Counterbored
on Center and 6" from Each End 12" On Center and 6" from Each End
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
visit fhc-usa.com to search for
Base Shoe 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 17
