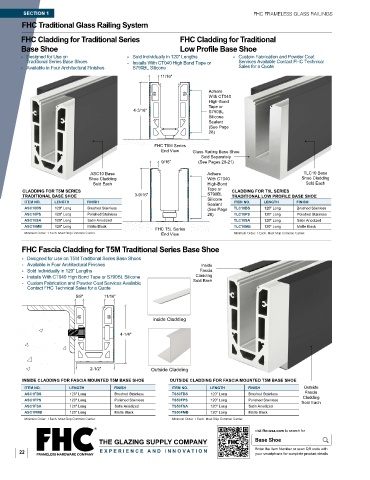

Page 36 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC Traditional Glass Railing System

FHC Cladding for Traditional Series FHC Cladding for Traditional
Base Shoe Low Profile Base Shoe
- Designed for Use on - Sold Individually in 120" Lengths - Custom Fabrication and Powder Coat
Traditional Series Base Shoes - Installs With CT040 High Bond Tape or Services Available Contact FHC Technical
- Available in Four Architectural Finishes S790BL Silicone Sales for a Quote
11/16"
Adhere
With CT040
High-Bond
Tape or
4-3/16"
S790BL
Silicone
Sealant
(See Page
28)
FHC T5M Series
End View Glass Railing Base Shoe
Sold Separately
9/16" (See Pages 20-21)

ASC10 Base Adhere TLC10 Base
Shoe Cladding With CT040 Shoe Cladding
Sold Each High-Bond Sold Each
CLADDING FOR T5M SERIES Tape or CLADDING FOR T5L SERIES
TRADITIONAL BASE SHOE 3-9/16" S790BL TRADITIONAL LOW PROFILE BASE SHOE
Silicone
ITEM NO. LENGTH FINISH ITEM NO. LENGTH FINISH
Sealant
ASC10BS 120" Long Brushed Stainless TLC10BS 120" Long Brushed Stainless
(See Page
ASC10PS 120" Long Polished Stainless 28) TLC10PS 120" Long Polished Stainless
ASC10SA 120" Long Satin Anodized TLC10SA 120" Long Satin Anodized
ASC10MB 120" Long Matte Black TLC10MB 120" Long Matte Black
FHC T5L Series
Minimum Order: 1 Each. Must Ship Common Carrier. Minimum Order: 1 Each. Must Ship Common Carrier.
End View
FHC Fascia Cladding for T5M Traditional Series Base Shoe
- Designed for Use on T5M Traditional Series Base Shoes
- Available in Four Architectural Finishes Inside
- Sold Individually in 120" Lengths Fascia
- Installs With CT040 High Bond Tape or S790BL Silicone Cladding
Sold Each
- Custom Fabrication and Powder Coat Services Available
Contact FHC Technical Sales for a Quote
5/8" 11/16"

Inside Cladding

4-1/4"

2-1/2" Outside Cladding
INSIDE CLADDING FOR FASCIA MOUNTED T5M BASE SHOE OUTSIDE CLADDING FOR FASCIA MOUNTED T5M BASE SHOE
ITEM NO. LENGTH FINISH ITEM NO. LENGTH FINISH Outside
ASC1FBS 120" Long Brushed Stainless TS50FBS 120" Long Brushed Stainless Fascia
Cladding
ASC1FPS 120" Long Polished Stainless TS50FPS 120" Long Polished Stainless
Sold Each
ASC1FSA 120" Long Satin Anodized TS50FSA 120" Long Satin Anodized
ASC1FMB 120" Long Matte Black TS50FMB 120" Long Matte Black
Minimum Order: 1 Each. Must Ship Common Carrier. Minimum Order: 1 Each. Must Ship Common Carrier.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Shoe

22 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
