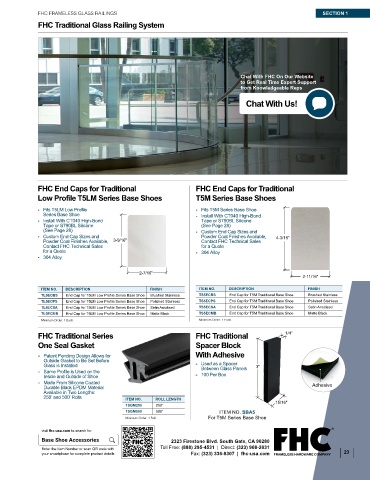

Page 37 - FHC FGR24R Architectural Railing Systems

FHC FRAMELESS GLASS RAILINGS SECTION 1
FHC Traditional Glass Railing System

Chat With FHC On Our Website
to Get Real Time Expert Support
from Knowledgeable Reps

Chat With Us!

FHC End Caps for Traditional FHC End Caps for Traditional
Low Profile T5LM Series Base Shoes T5M Series Base Shoes
- Fits T5LM Low Profile - Fits T5M Series Base Shoe
Series Base Shoe - Install With CT040 High-Bond
- Install With CT040 High-Bond Tape or S790BL Silicone
Tape or S790BL Silicone (See Page 28)
(See Page 28) - Custom End Cap Sizes and

- Custom End Cap Sizes and Powder Coat Finishes Available, 4-3/16"
Powder Coat Finishes Available, 3-9/16" Contact FHC Technical Sales
Contact FHC Technical Sales for a Quote
for a Quote - 304 Alloy
- 304 Alloy

2-7/16"
2-11/16"
ITEM NO. DESCRIPTION FINISH ITEM NO. DESCRIPTION FINISH
TL5ECBS End Cap for T5LM Low Profile Series Base Shoe Brushed Stainless TS5ECBS End Cap for T5M Traditional Base Shoe Brushed Stainless
TL5ECPS End Cap for T5LM Low Profile Series Base Shoe Polished Stainless TS5ECPS End Cap for T5M Traditional Base Shoe Polished Stainless
TL5ECSA End Cap for T5LM Low Profile Series Base Shoe Satin Anodized TS5ECSA End Cap for T5M Traditional Base Shoe Satin Anodized
TL5ECMB End Cap for T5LM Low Profile Series Base Shoe Matte Black TS5ECMB End Cap for T5M Traditional Base Shoe Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Traditional Series FHC Traditional 1/4"
One Seal Gasket Spacer Block

- Patent Pending Design Allows for With Adhesive
Outside Gasket to Be Set Before
Glass is Installed - Used as a Spacer 3"
Between Glass Panels
- Same Profile is Used on the
Inside and Outside of Shoe - 100 Per Box
- Made From Silicone Coated Adhesive
Durable Black EPDM Material
Available in Two Lengths:
250' and 500' Rolls ITEM NO. ROLL LENGTH
1SGM250 250' 15/16"
1SGM500 500' ITEM NO. SBA5
For T5M Series Base Shoe
Minimum Order: 1 Roll.
visit fhc-usa.com to search for
Base Shoe Accessories 2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031 23
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com
