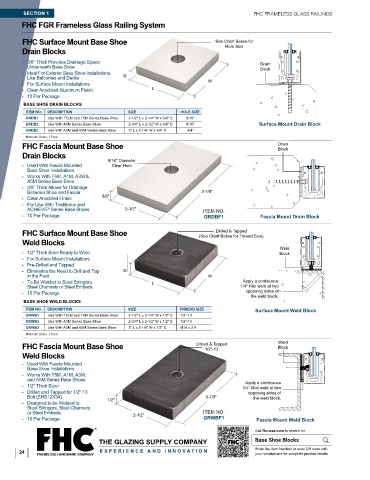

Page 38 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC FGR Frameless Glass Railing System

FHC Surface Mount Base Shoe See Chart Below for
Drain Blocks Hole Size
- 3/8" Thick Provides Drainage Space Drain
Underneath Base Shoe
Block
- Ideal For Exterior Base Shoe Installations,
Like Balconies and Decks D
W
- For Surface Mount Installations
- Clear Anodized Aluminum Finish L
- 10 Per Package
BASE SHOE DRAIN BLOCKS
ITEM NO. DESCRIPTION SIZE HOLE SIZE
GRDB1 Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 3/8" D 9/16"
GRDB2 Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 3/8" D 9/16" Surface Mount Drain Block
GRDB3 Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 3/8" D 3/4"
Minimum Order: 1 Pack.
FHC Fascia Mount Base Shoe Drain
Block
Drain Blocks
9/16" Diameter
- Used With Fascia Mounted Clear Hole
Base Shoe Installations
- Works With T5M, A1M, A3M &
A5M Series Base Shoe
- 3/8" Thick Allows for Drainage
Between Shoe and Fascia 3-7/8"
3/8"
- Clear Anodized Finish
- For Use With Traditional and
®
ACHIEVE Series Base Shoes 2-1/2" ITEM NO.
- 10 Per Package GRDBF1 Fascia Mount Drain Block
FHC Surface Mount Base Shoe (See Chart Below for Thread Size)
Drilled & Tapped
Weld Blocks
Weld
- 1/2" Thick Steel Ready to Weld Block
- For Surface Mount Installations
- Pre-Drilled and Tapped
- Eliminates the Need to Drill and Tap D
in the Field W
- To Be Welded to Steel Stringers, L Apply a continuous
Steel Channels or Steel Embeds 1/4" fillet weld at two
opposing sides of
- 10 Per Package
the weld block.
BASE SHOE WELD BLOCKS
ITEM NO. DESCRIPTION SIZE THREAD SIZE Surface Mount Weld Block
GRWB1 Use With T5LM and T5M Series Base Shoe 2-1/2" L x 2-1/4" W x 1/2" D 1/2"-13
GRWB2 Use With A1M Series Base Shoe 2-3/4" L x 2-1/2" W x 1/2" D 1/2"-13
GRWB3 Use With A3M and A5M Series Base Shoe 3" L x 3-1/4" W x 1/2" D M14 x 2.0
Minimum Order: 1 Pack.
FHC Fascia Mount Base Shoe Drilled & Tapped Weld
Block
1/2"-13
Weld Blocks
- Used With Fascia Mounted
Base Shoe Installations
- Works With T5M, A1M, A3M,
and A5M Series Base Shoes
Apply a continuous
- 1/2" Thick Steel
1/4" fillet weld at two
- Drilled and Tapped for 1/2"-13 opposing sides of
Bolt (SHS12X34) 3-7/8" the weld block.
1/2"
- Designed to be Welded to
Steel Stringers, Steel Channels
or Steel Embeds ITEM NO.
2-1/2"
- 10 Per Package GRWBF1 Fascia Mount Weld Block
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Shoe Blocks
24 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
