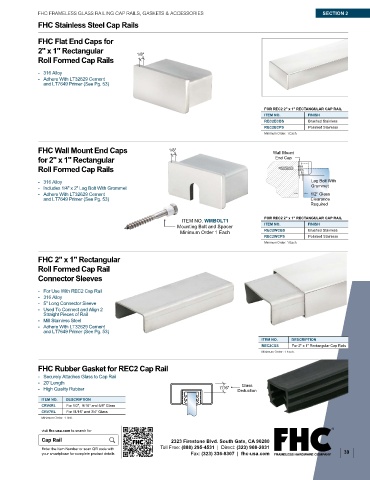

Page 53 - FHC FGR24R Architectural Railing Systems

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2

FHC Stainless Steel Cap Rails

FHC Flat End Caps for
2" x 1" Rectangular
1/8"
Roll Formed Cap Rails

- 316 Alloy
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

FOR REC2 2" x 1" RECTANGULAR CAP RAIL
ITEM NO. FINISH
REC2ECBS Brushed Stainless
REC2ECPS Polished Stainless
Minimum Order: 1 Each.

FHC Wall Mount End Caps 1/8" Wall Mount
for 2" x 1" Rectangular End Cap
Roll Formed Cap Rails

- 316 Alloy Lag Bolt With
Grommet

- Includes 1/4" x 2" Lag Bolt With Grommet
- Adhere With LT32629 Cement 1/2" Glass
and LT7649 Primer (See Pg. 53) Clearance
Required
FOR REC2 2" x 1" RECTANGULAR CAP RAIL
ITEM NO. WMBOLT1
ITEM NO. FINISH
Mounting Bolt and Spacer
REC2WCBS Brushed Stainless
Minimum Order 1 Each
REC2WCPS Polished Stainless
Minimum Order: 1 Each.
FHC 2" x 1" Rectangular
Roll Formed Cap Rail
Connector Sleeves

- For Use With REC2 Cap Rail
- 316 Alloy
- 5" Long Connector Sleeve
- Used To Connect and Align 2
Straight Pieces of Rail
- Mill Stainless Steel
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)
ITEM NO. DESCRIPTION
REC2CSS For 2" x 1" Rectangular Cap Rails
Minimum Order: 1 Each.

FHC Rubber Gasket for REC2 Cap Rail
- Securely Attaches Glass to Cap Rail
- 20' Length Glass
- High Quality Rubber 7/16" Deduction
ITEM NO. DESCRIPTION
CRV6RL For 1/2", 9/16" and 5/8" Glass 11/16, 3/4
CRV7RL For 11/16" and 3/4" Glass
Minimum Order: 1 Roll.
visit fhc-usa.com to search for
Cap Rail 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 39
1/2,9/16,11/16
