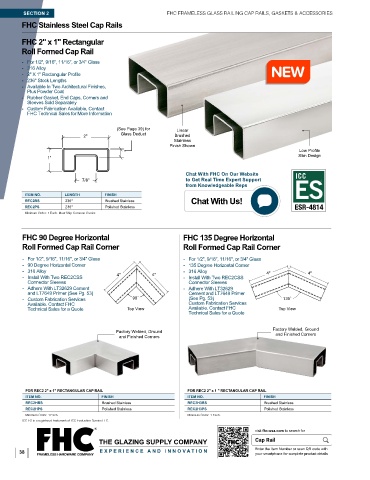

Page 52 - FHC FGR24R Architectural Railing Systems

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES

FHC Stainless Steel Cap Rails

FHC 2" x 1" Rectangular
Roll Formed Cap Rail
- For 1/2", 9/16", 11/16", or 3/4" Glass
- 316 Alloy
- 2" X 1" Rectangular Profile
- 236" Stock Lengths
- Available In Two Architectural Finishes,
Plus Powder Coat
- Rubber Gasket, End Caps, Corners and RC20
Sleeves Sold Separately
- Custom Fabrication Available, Contact
FHC Technical Sales for More Information

(See Page 39) for Linear
Glass Deduct
2" Brushed
Stainless
Finish Shown
Low Profile
Slim Design
1"

Chat With FHC On Our Website ICC
7/8" to Get Real Time Expert Support
RC15 from Knowledgeable Reps
ITEM NO. LENGTH FINISH
RC15
Chat With Us!
REC2BS 236" Brushed Stainless
REC2PS 236" Polished Stainless ESR-4814
Minimum Order: 1 Each. Must Ship Common Carrier.

FHC 90 Degree Horizontal 11/16, 3/4 FHC 135 Degree Horizontal
Roll Formed Cap Rail Corner Roll Formed Cap Rail Corner

- For 1/2", 9/16", 11/16", or 3/4" Glass - For 1/2", 9/16", 11/16", or 3/4" Glass
- 90 Degree Horizontal Corner - 135 Degree Horizontal Corner
- 316 Alloy - 316 Alloy 4" 4"
4" 4"
- Install With Two REC2CSS - Install With Two REC2CSS
Connector Sleeves Connector Sleeves
- Adhere With LT32629 Cement - Adhere With LT32629
and LT7649 Primer (See Pg. 53) Cement and LT7649 Primer
- Custom Fabrication Services 90˚ (See Pg. 53) 135˚
Available. Contact FHC Custom Fabrication Services
Technical Sales for a Quote Top View 1/2,9/16,11/16 Available. Contact FHC Top View
Technical Sales for a Quote

Factory Welded, Ground
Factory Welded, Ground and Finished Corners
and Finished Corners

FOR REC2 2" x 1" RECTANGULAR CAP RAIL FOR REC2 2" x 1 " RECTANGULAR CAP RAIL RC20
ITEM NO. FINISH ITEM NO. FINISH
REC2HBS Brushed Stainless REC2H3BS Brushed Stainless
REC2HPS Polished Stainless REC2H3PS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
38 EXPERIENCE AND INNOV A TION your smartphone for complete product details
