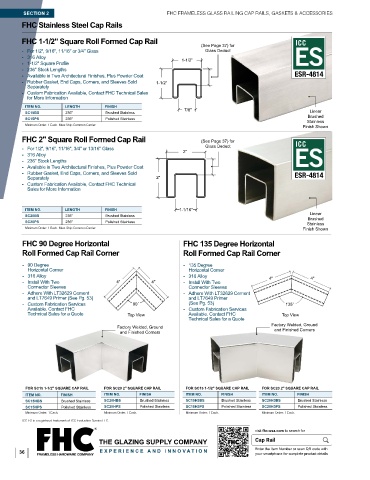

Page 50 - FHC FGR24R Architectural Railing Systems

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES

FHC Stainless Steel Cap Rails

FHC 1-1/2" Square Roll Formed Cap Rail ICC
(See Page 37) for
- For 1/2", 9/16", 11/16" or 3/4" Glass Glass Deduct
- 316 Alloy
1-1/2"
- 1-1/2" Square Profile
- 236" Stock Lengths
- Available in Two Architectural Finishes, Plus Powder Coat ESR-4814
- Rubber Gasket, End Caps, Corners, and Sleeves Sold 1-1/2"
Separately
- Custom Fabrication Available, Contact FHC Technical Sales
for More Information
ITEM NO. LENGTH FINISH RC20
7/8" Linear
SC15BS 236" Brushed Stainless
Brushed
SC15PS 236" Polished Stainless
Stainless
Minimum Order: 1 Each. Must Ship Common Carrier.
Finish Shown
FHC 2" Square Roll Formed Cap Rail (See Page 37) for
Glass Deduct ICC
- For 1/2", 9/16", 11/16", 3/4" or 13/16" Glass
2"
- 316 Alloy
- 236" Stock Lengths
- Available in Two Architectural Finishes, Plus Powder Coat
- Rubber Gasket, End Caps, Corners, and Sleeves Sold ESR-4814
Separately 2"
- Custom Fabrication Available, Contact FHC Technical
Sales for More Information
RC15 RC15
ITEM NO. LENGTH FINISH 1-1/16"
Linear
SC20BS 236" Brushed Stainless
Brushed
SC20PS 236" Polished Stainless
Stainless
Minimum Order: 1 Each. Must Ship Common Carrier. Finish Shown
FHC 90 Degree Horizontal FHC 135 Degree Horizontal
Roll Formed Cap Rail Corner Roll Formed Cap Rail Corner
- 90 Degree - 135 Degree
Horizontal Corner Horizontal Corner
- 316 Alloy - 316 Alloy
4" 4"
- Install With Two 4" 4" - Install With Two
Connector Sleeves Connector Sleeves
- Adhere With LT32629 Cement - Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53) and LT7649 Primer
- Custom Fabrication Services 90˚ (See Pg. 53) 135˚
Available. Contact FHC - Custom Fabrication Services
Technical Sales for a Quote Top View Available. Contact FHC Top View
Technical Sales for a Quote
Factory Welded, Ground
Factory Welded, Ground
and Finished Corners
and Finished Corners

FOR SC15 1-1/2" SQUARE CAP RAIL FOR SC20 2" SQUARE CAP RAIL FOR SC15 1-1/2" SQUARE CAP RAIL FOR SC20 2" SQUARE CAP RAIL RC20
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
SC15HBS Brushed Stainless SC20HBS Brushed Stainless SC15H3BS Brushed Stainless SC20H3BS Brushed Stainless
SC15HPS Polished Stainless SC20HPS Polished Stainless SC15H3PS Polished Stainless SC20H3PS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
