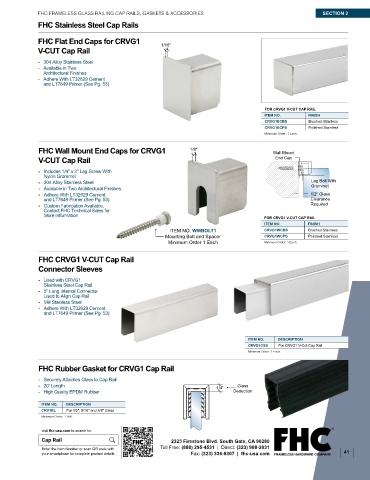

Page 55 - FHC FGR24R Architectural Railing Systems

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2

FHC Stainless Steel Cap Rails

FHC Flat End Caps for CRVG1
1/16"
V-CUT Cap Rail
- 304 Alloy Stainless Steel
- Available in Two
Architectural Finishes
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

FOR CRVG1 V-CUT CAP RAIL
ITEM NO. FINISH
CRVG1ECBS Brushed Stainless
CRVG1ECPS Polished Stainless
Minimum Order: 1 Each.

FHC Wall Mount End Caps for CRVG1 1/8" Wall Mount
V-CUT Cap Rail End Cap

- Includes 1/4" x 2" Lag Screw With
Nylon Grommet
- 304 Alloy Stainless Steel Lag Bolt With
Grommet
- Available in Two Architectural Finishes

- Adhere With LT32629 Cement 1/2" Glass
and LT7649 Primer (See Pg. 53) Clearance
Required
- Custom Fabrication Available,
Contact FHC Technical Sales for
More Information
FOR CRVG1 V-CUT CAP RAIL
ITEM NO. FINISH
ITEM NO. WMBOLT1 CRVG1WCBS Brushed Stainless
Mounting Bolt and Spacer CRVG1WCPS Polished Stainless
Minimum Order 1 Each Minimum Order: 1 Each.
FHC CRVG1 V-CUT Cap Rail
Connector Sleeves
- Used with CRVG1
Stainless Steel Cap Rail
- 5" Long Internal Connector
Used to Align Cap Rail
- Mill Stainless Steel
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)

ITEM NO. DESCRIPTION
CRVG1CSS For CRVG1 V-Cut Cap Rail
Minimum Order: 1 Each.

FHC Rubber Gasket for CRVG1 Cap Rail
- Securely Attaches Glass to Cap Rail
- 20' Length Glass
1/4"
- High Quality EPDM Rubber Deduction
ITEM NO. DESCRIPTION
CRV1RL For 1/2", 9/16" and 5/8" Glass
Minimum Order: 1 Roll.
visit fhc-usa.com to search for
Cap Rail 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 41
