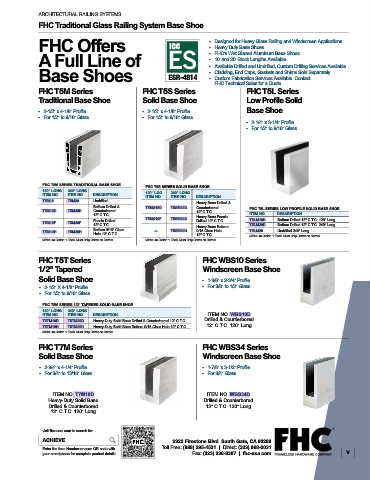

ARCHITECTURAL RAILING SYSTEMS
FHC Traditional Glass Railing System Base Shoe

FHC Offers ICC - Designed for Heavy Glass Railing and Windscreen Applications
- Heavy Duty Base Shoes
A Full Line of - FHC's Wet Glazed Aluminum Base Shoes
- 10' and 20' Stock Lengths Available
Base Shoes ESR-4814 - Available Drilled and Undrilled, Custom Drilling Services Available
- Cladding, End Caps, Gaskets and Shims Sold Separately
- Custom Fabrication Services Available. Contact
FHC Technical Sales for a Quote
FHC T5M Series FHC T5S Series FHC T5L Series
Traditional Base Shoe Solid Base Shoe Low Profile Solid
Base Shoe
- 2-1/2" x 4-1/8" Profile - 2-1/2" x 4-1/8" Profile
- For 1/2" to 9/16" Glass - For 1/2" to 9/16" Glass
- 2-1/4" x 3-1/4" Profile
- For 1/2" to 9/16" Glass

FHC T5M SERIES TRADITIONAL BASE SHOE FHC T5S SERIES SOLID BASE SHOE
120" LONG 240" LONG 120" LOG 240" LONG
ITEM NO. ITEM NO. DESCRIPTION ITEM NO. ITEM NO. DESCRIPTION
T5M10 T5M20 Undrilled Heavy Base Drilled &
Bottom Drilled & T5SM10D T5SM20D Counterbored FHC T5L SERIES LOW PROFILE SOLID BASE SHOE
T5M10D T5M20D Counterbored 12" C.T.C. ITEM NO. DESCRIPTION
12" C.T.C. T5SM10F T5SM20D Heavy Base Fascia T5LM10D
T5M10F T5M20F Fascia Drilled Drilled 12" C.T.C. Bottom Drilled 12" C.T.C. 120" Long
12" C.T.C. Heavy Base Bottom T5LM20D Bottom Drilled 12" C.T.C. 240" Long
T5M10H T5M20H Bottom 9/16" Clear --- T5SM20H 9/16 Clear Hole T5LM20 Undrilled 240" Long
Hole 12" C.T.C. 12" C.T.C. Minimum Order: 1 Each. Must Ship Common Carrier.
Minimum Order: 1 Each. Must Ship Common Carrier. Minimum Order: 1 Each. Must Ship Common Carrier.

FHC T5T Series FHC WBS10 Series
1/2" Tapered Windscreen Base Shoe
Solid Base Shoe - 1-3/8" x 2-3/4" Profile

- 2-1/2" X 4-1/8" Profile - For 3/8" to 1/2" Glass
- For 1/2" to 9/16" Glass
FHC T5M SERIES 1/2" TAPERED SOLID BASE SHOE
120" LONG 240" LONG
ITEM NO. ITEM NO. DESCRIPTION ITEM NO. WBS10D
T5TM10D T5TM20D Heavy-Duty Solid Base Drilled & Counterbored 12" C.T.C. Drilled & Counterbored
T5TM10H T5TM20H Heavy-Duty Solid Base Bottom 9/16 Clear Hole 12" C.T.C 12" C.T.C. 120" Long
Minimum Order: 1 Each. Must Ship Common Carrier.

FHC T7M Series FHC WBS34 Series
Solid Base Shoe Windscreen Base Shoe
- 2-3/4" x 4-1/4" Profile - 1-7/8" x 3-1/2" Profile
- For 3/4" to 13/16" Glass - For 3/4" Glass

ITEM NO. T7M100 ITEM NO. WBS34D
Heavy-Duty Solid Base Drilled & Counterbored
Drilled & Counterbored 12" C.T.C. 120" Long
12" C.T.C. 120" Long
