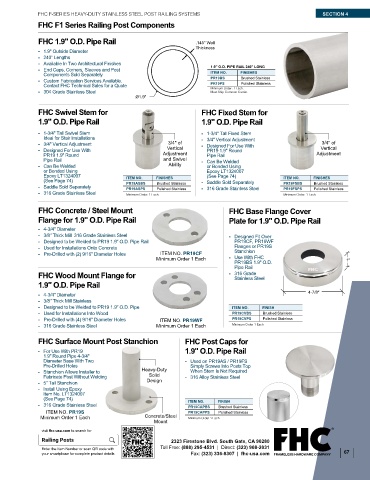

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4
FHC F1 Series Railing Post Components

FHC 1.9" O.D. Pipe Rail .145" Wall
Thickness
- 1.9" Outside Diameter
- 240" Lengths
- Available In Two Architectural Finishes
- End Caps, Corners, Sleeves and Post 1.9" O.D. PIPE RAIL 240" LONG
Components Sold Separately ITEM NO. FINISHES
- Custom Fabrication Services Available. PR19BS Brushed Stainless
Contact FHC Technical Sales for a Quote PR19PS Polished Stainless
- 304 Grade Stainless Steel Minimum Order: 1 Each.
Must Ship Common Carrier.
Ø1.9"
FHC Swivel Stem for FHC Fixed Stem for
1.9" O.D. Pipe Rail 1.9" O.D. Pipe Rail

- 1-3/4" Tall Swivel Stem - 1-3/4" Tall Fixed Stem
Ideal for Stair Installations - 3/4" Vertical Adjustment
- 3/4" Vertical Adjustment 3/4" of - Designed For Use With 3/4" of
- Designed For Use With Vertical PR19 1.9" Round Vertical
PR19 1.9" Round Adjustment Pipe Rail Adjustment
Pipe Rail and Swivel - Can Be Welded
- Can Be Welded Ability or Bonded Using
or Bonded Using Epoxy LT1324007
Epoxy LT1324007 ITEM NO. FINISHES (See Page 74) ITEM NO. FINISHES
(See Page 74) - Saddle Sold Separately
- Saddle Sold Separately PR19ASBS Brushed Stainless - 316 Grade Stainless Steel PR19FSBS Brushed Stainless
PR19ASPS
Polished Stainless
PR19FSPS
Polished Stainless
- 316 Grade Stainless Steel Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Concrete / Steel Mount FHC Base Flange Cover
Flange for 1.9" O.D. Pipe Rail Plate for 1.9" O.D. Pipe Rail
- 4-3/4" Diameter
- 3/8" Thick Mill 316 Grade Stainless Steel - Designed Fit Over

- Designed to be Welded to PR19 1.9" O.D. Pipe Rail PR19CF, PR19WF
- Used for Installations Onto Concrete Flanges or PR19S
- Pre-Drilled with (2) 9/16" Diameter Holes ITEM NO. PR19CF Stanchion
Minimum Order 1 Each - Use With FHC 1"
PR19BS 1.9" O.D.
Pipe Rail
FHC Wood Mount Flange for - 316 Grade
Stainless Steel
1.9" O.D. Pipe Rail
- 4-3/4" Diameter 4-7/8"
- 3/8" Thick Mill Stainless
- Designed to be Welded to PR19 1.9" O.D. Pipe ITEM NO. FINISH
- Used for Installations Into Wood PR19CVBS Brushed Stainless
- Pre-Drilled with (4) 9/16" Diameter Holes ITEM NO. PR19WF PR19CVPS Polished Stainless
- 316 Grade Stainless Steel Minimum Order 1 Each Minimum Order 1 Each

FHC Surface Mount Post Stanchion FHC Post Caps for

- For Use With PR19 1.9" O.D. Pipe Rail
1.9" Round Pipe 4-3/4"
Diameter Base With Two - Used on PR19AS / PR19FS
Pre-Drilled Holes Simply Screws Into Posts Top
- Stanchion Allows Installer to Heavy-Duty When Stem Is Not Required
Fabricate Post Without Welding Solid - 316 Alloy Stainless Steel
- 5" Tall Stanchion Design
- Install Using Epoxy
Item No. LT1324007
(See Page 74) ITEM NO. FINISH
- 316 Grade Stainless Steel PR19CAPBS Brushed Stainless
ITEM NO. PR19S PR19CAPPS Polished Stainless
Minimum Order 1 Each Concrete/Steel Minimum Order 1 Each
Mount
