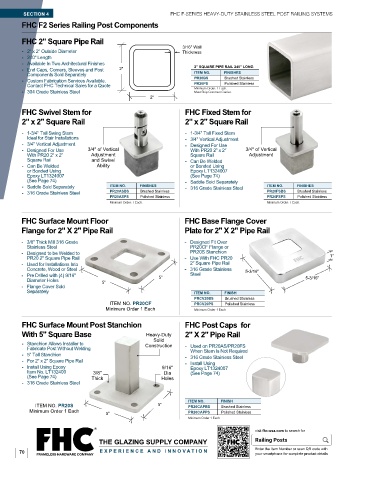

Page 84 - FHC FGR24R Architectural Railing Systems

SECTION 4 FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS

FHC F2 Series Railing Post Components

FHC 2" Square Pipe Rail
3/16" Wall
- 2" x 2" Outside Diameter Thickness
- 240" Length
- Available In Two Architectural Finishes 2" SQUARE PIPE RAIL 240" LONG
- End Caps, Corners, Sleeves and Post 2"
Components Sold Separately ITEM NO. FINISHES
PR20BS Brushed Stainless
- Custom Fabrication Services Available.
Contact FHC Technical Sales for a Quote PR20PS Polished Stainless
Minimum Order: 1 Each.
- 304 Grade Stainless Steel Must Ship Common Carrier.
2"
FHC Swivel Stem for FHC Fixed Stem for
2" x 2" Square Rail 2" x 2" Square Rail

- 1-3/4" Tall Swing Stem - 1-3/4" Tall Fixed Stem
Ideal for Stair Installations - 3/4" Vertical Adjustment
- 3/4" Vertical Adjustment - Designed For Use
- Designed For Use 3/4" of Vertical With PR20 2" x 2" 3/4" of Vertical
With PR20 2" x 2" Adjustment Square Rail Adjustment
Square Rail and Swivel - Can Be Welded
- Can Be Welded Ability or Bonded Using
or Bonded Using Epoxy LT1324007
Epoxy LT1324007 (See Page 74)
(See Page 74) - Saddle Sold Separately
- Saddle Sold Separately ITEM NO. FINISHES - 316 Grade Stainless Steel ITEM NO. FINISHES
PR20ASBS Brushed Stainless PR20FSBS Brushed Stainless
- 316 Grade Stainless Steel
PR20ASPS Polished Stainless PR20FSPS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Surface Mount Floor FHC Base Flange Cover
Flange for 2" X 2" Pipe Rail Plate for 2" X 2" Pipe Rail

- 3/8" Thick Mill 316 Grade - Designed Fit Over
Stainless Steel PR20CF Flange or
- Designed to be Welded to PR20S Stanchion 1"
PR20 2" Square Pipe Rail - Use With FHC PR20
- Used for Installations Into 2" Square Pipe Rail
Concrete, Wood or Steel - 316 Grade Stainless 5-3/16"
- Pre Drilled with (4) 9/16" 5" Steel 5-3/16"
Diameter Holes
5"
- Flange Cover Sold
Separately ITEM NO. FINISH
PRCV20BS Brushed Stainless
ITEM NO. PR20CF PRCV20PS Polished Stainless
Minimum Order 1 Each Minimum Order 1 Each
FHC Surface Mount Post Stanchion FHC Post Caps for
With 5" Square Base Heavy-Duty 2" X 2" Pipe Rail
Solid
- Stanchion Allows Installer to Construction - Used on PR20AS/PR20FS
Fabricate Post Without Welding When Stem Is Not Required
- 5" Tall Stanchion
- 316 Grade Stainless Steel
- For 2" x 2" Square Pipe Rail
- Install Using
- Install Using Epoxy 9/16" Epoxy LT1324007
Item No. LT132400 3/8" Dia (See Page 74)
(See Page 74) Thick Holes
- 316 Grade Stainless Steel
ITEM NO. FINISH
ITEM NO. PR20S 5" PR20CAPBS Brushed Stainless
Minimum Order 1 Each PR20CAPPS Polished Stainless
3/8" 5"
Minimum Order 1 Each
Thick
visit fhc-usa.com to search for
Railing Posts
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
70 EXPERIENCE AND INNOV A TION your smartphone for complete product details
