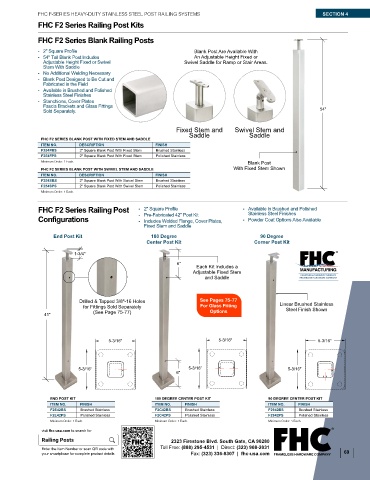

Page 83 - FHC FGR24R Architectural Railing Systems

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4

FHC F2 Series Railing Post Kits

FHC F2 Series Blank Railing Posts
- 2" Square Profile Blank Post Are Available With

- 54" Tall Blank Post Includes An Adjustable Height Fixed or
Adjustable Height Fixed or Swivel Swivel Saddle for Ramp or Stair Areas.
Stem With Saddle
- No Additional Welding Necessary
- Blank Post Designed to Be Cut and
Fabricated in the Field
- Available in Brushed and Polished
Stainless Steel Finishes
- Stanchions, Cover Plates
Fascia Brackets and Glass Fittings 54"
Sold Separately.

Fixed Stem and Swivel Stem and
Saddle Saddle
FHC F2 SERIES BLANK POST WITH FIXED STEM AND SADDLE
ITEM NO. DESCRIPTION FINISH
F254FBS 2" Square Blank Post With Fixed Stem Brushed Stainless
F254FPS 2" Square Blank Post With Fixed Stem Polished Stainless
Minimum Order: 1 Each.
Blank Post
FHC F2 SERIES BLANK POST WITH SWIVEL STEM AND SADDLE With Fixed Stem Shown
ITEM NO. DESCRIPTION FINISH
F254SBS 2" Square Blank Post With Swivel Stem Brushed Stainless
F254SPS 2" Square Blank Post With Swivel Stem Polished Stainless
Minimum Order: 1 Each.

FHC F2 Series Railing Post - 2" Square Profile - Available in Brushed and Polished
- Pre-Fabricated 42" Post Kit Stainless Steel Finishes
Configurations - Includes Welded Flange, Cover Plates, - Powder Coat Options Also Available
Fixed Stem and Saddle
End Post Kit 180 Degree 90 Degree
Center Post Kit Corner Post Kit
1-3/4"
6"
Each Kit Includes a
Adjustable Fixed Stem
and Saddle

Drilled & Tapped 3/8"-16 Holes See Pages 75-77 Linear Brushed Stainless
for Fittings Sold Separately For Glass Fitting Steel Finish Shown
(See Page 75-77) Options
41"

5-3/16" 5-3/16" 5-3/16"

5-3/16" 5-3/16" 5-3/16"
6"

END POST KIT 180 DEGREE CENTER POST KIT 90 DEGREE CENTER POST KIT
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
F2E42BS Brushed Stainless F2C42BS Brushed Stainless F2942BS Brushed Stainless
F2E42PS Polished Stainless F2C42PS Polished Stainless F2942PS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
