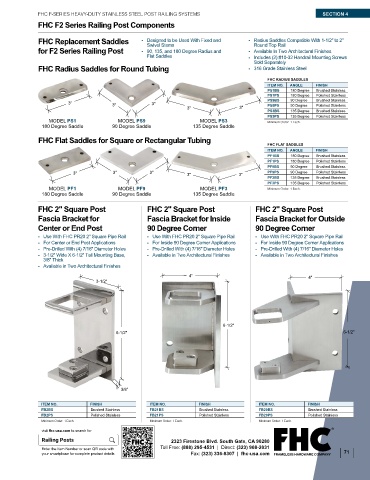

Page 85 - FHC FGR24R Architectural Railing Systems

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4

FHC F2 Series Railing Post Components

FHC Replacement Saddles - Designed to be Used With Fixed and - Radius Saddles Compatible With 1-1/2" to 2"
Swivel Stems Round Top Rail
for F2 Series Railing Post - 90, 135, and 180 Degree Radius and - Available In Two Architectural Finishes
Flat Saddles - Includes (2) #10-32 Handrail Mounting Screws
Sold Separately
FHC Radius Saddles for Round Tubing - 316 Grade Stainless Steel
FHC RADIUS SADDLES
ITEM NO. ANGLE FINISH
PS1BS 180 Degree Brushed Stainless
PS1PS 180 Degree Polished Stainless
PS9BS 90 Degree Brushed Stainless
3" 3"
3" PS9PS 90 Degree Polished Stainless
3" 3"
PS3BS 135 Degree Brushed Stainless
PS3PS 135 Degree Polished Stainless
MODEL PS1 MODEL PS9 MODEL PS3 Minimum Order: 1 Each.
180 Degree Saddle 90 Degree Saddle 135 Degree Saddle
FHC Flat Saddles for Square or Rectangular Tubing
FHC FLAT SADDLES
ITEM NO. ANGLE FINISH
PF1BS 180 Degree Brushed Stainless
PF1PS 180 Degree Polished Stainless
PF9BS 90 Degree Brushed Stainless
3" 3" 3" 3" 3" PF9PS 90 Degree Polished Stainless
PF3BS 135 Degree Brushed Stainless
PF3PS 135 Degree Polished Stainless
MODEL PF1 MODEL PF9 MODEL PF3 Minimum Order: 1 Each.
180 Degree Saddle 90 Degree Saddle 135 Degree Saddle
FHC 2" Square Post FHC 2" Square Post FHC 2" Square Post
Fascia Bracket for Fascia Bracket for Inside Fascia Bracket for Outside
Center or End Post 90 Degree Corner 90 Degree Corner
- Use With FHC PR20 2" Square Pipe Rail - Use With FHC PR20 2" Square Pipe Rail - Use With FHC PR20 2" Square Pipe Rail
- For Center or End Post Applications - For Inside 90 Degree Corner Applications - For Inside 90 Degree Corner Applications
- Pre-Drilled With (4) 7/16" Diameter Holes - Pre-Drilled With (4) 7/16" Diameter Holes - Pre-Drilled With (4) 7/16" Diameter Holes
- 3-1/2" Wide X 6-1/2" Tall Mounting Base, - Available in Two Architectural Finishes - Available in Two Architectural Finishes
3/8" Thick
- Available in Two Architectural Finishes

4"
4"
3-1/2"

6-1/2"
6-1/2" 6-1/2"

3/8"

ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
FB2BS Brushed Stainless FB21BS Brushed Stainless FB20BS Brushed Stainless
FB2PS Polished Stainless FB21PS Polished Stainless FB20PS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Railing Posts 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 71
