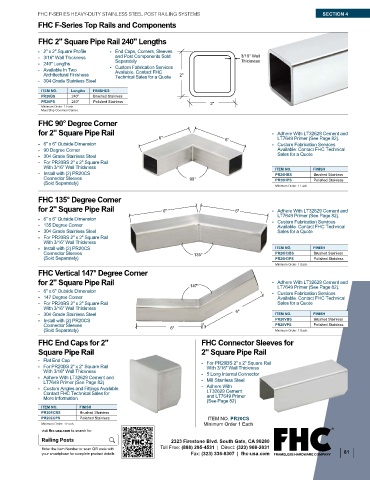

Page 95 - FHC FGR24R Architectural Railing Systems

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4

FHC F-Series Top Rails and Components

FHC 2" Square Pipe Rail 240" Lengths
- 2" x 2" Square Profile - End Caps, Corners, Sleeves
- 3/16" Wall Thickness and Post Components Sold 3/16" Wall
Thickness
- 240" Lengths Separately
- Available In Two - Custom Fabrication Services
Available. Contact FHC
Architectural Finishess 2"
Technical Sales for a Quote
- 304 Grade Stainless Steel

ITEM NO. Lengths FINISHES
PR20BS 240" Brushed Stainless
PR20PS 240" Polished Stainless
2"
Minimum Order: 1 Each.
Must Ship Common Carrier.
FHC 90° Degree Corner
for 2" Square Pipe Rail - Adhere With LT32629 Cement and
6" LT7649 Primer (See Page 82).
6"
- 6" x 6" Outside Dimension - Custom Fabrication Services
- 90 Degree Corner Available. Contact FHC Technical
Sales for a Quote
- 304 Grade Stainless Steel
- For PR20BS 2" x 2" Square Rail
With 3/16" Wall Thickness ITEM NO. FINISH
- Install with (2) PR20CS PR20HBS Brushed Stainless
Connector Sleeves 90° PR20HPS Polished Stainless
(Sold Separately)
Minimum Order: 1 Each.
FHC 135° Degree Corner
for 2" Square Pipe Rail 6" 6" - Adhere With LT32629 Cement and
LT7649 Primer (See Page 82).
- 6" x 6" Outside Dimension
- Custom Fabrication Services
- 135 Degree Corner Available. Contact FHC Technical
- 304 Grade Stainless Steel Sales for a Quote
- For PR20BS 2" x 2" Square Rail
With 3/16" Wall Thickness
- Install with (2) PR20CS ITEM NO. FINISH
Connector Sleeves 135° PR20H3BS Brushed Stainless
(Sold Separately) PR20H3PS Polished Stainless
Minimum Order: 1 Each.
FHC Vertical 147° Degree Corner
for 2" Square Pipe Rail - Adhere With LT32629 Cement and
147° LT7649 Primer (See Page 82).
- 6" x 6" Outside Dimension
- Custom Fabrication Services
- 147 Degree Corner Available. Contact FHC Technical
- For PR20BS 2" x 2" Square Rail Sales for a Quote
With 3/16" Wall Thickness
6"
- 304 Grade Stainless Steel ITEM NO. FINISH
- Install with (2) PR20CS PR20VBS Brushed Stainless
Connector Sleeves 6" PR20VPS Polished Stainless
(Sold Separately) Minimum Order: 1 Each.
FHC End Caps for 2" FHC Connector Sleeves for
Square Pipe Rail 2" Square Pipe Rail
- Flat End Cap
- For PR20BS 2" x 2" Square Rail
- For PR20BS 2" x 2" Square Rail With 3/16" Wall Thickness
With 3/16" Wall Thickness
- 5 Long Internal Connector
- Adhere With LT32629 Cement and - Mill Stainless Steel
LT7649 Primer (See Page 82)
- Adhere With
- Custom Angles and Fittings Available. LT32629 Cement
Contact FHC Technical Sales for and LT7649 Primer
More Information
(See Page 82)
ITEM NO. FINISH
PR20ECBS Brushed Stainless
PR20ECPS Polished Stainless ITEM NO. PR20CS
Minimum Order: 1 Each. Minimum Order 1 Each
visit fhc-usa.com to search for
Railing Posts 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 81
