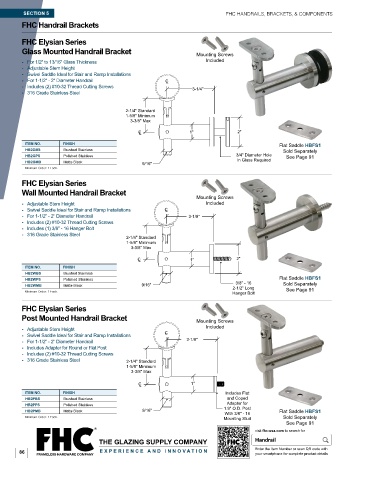

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Brackets

FHC Elysian Series
Glass Mounted Handrail Bracket Mounting Screws
- For 1/2" to 13/16" Glass Thickness Included
- Adjustable Stem Height
- Swivel Saddle Ideal for Stair and Ramp Installations
- For 1-1/2" - 2" Diameter Handrail C L
- Includes (2) #10-32 Thread Cutting Screws 3-1/4"
- 316 Grade Stainless Steel

2-1/4" Standard
1-5/8" Minimum
3-3/8" Max

C L 1" 2"
ITEM NO. FINISH Flat Saddle HBFS1
HB2GBS Brushed Stainless Sold Separately
HB2GPS Polished Stainless 3/4" Diameter Hole See Page 91
HB2GMB Matte Black 9/16" In Glass Required
Minimum Order: 1 Each.

FHC Elysian Series
Wall Mounted Handrail Bracket
Mounting Screws
- Adjustable Stem Height Included
- Swivel Saddle Ideal for Stair and Ramp Installations C L
- For 1-1/2" - 2" Diameter Handrail 3-1/8"
- Includes (2) #10-32 Thread Cutting Screws
- Includes (1) 3/8" - 16 Hanger Bolt
- 316 Grade Stainless Steel
2-1/4" Standard
1-5/8" Minimum
3-3/8" Max
C L 1" 2"
ITEM NO. FINISH
HB2WBS Brushed Stainless
HB2WPS Polished Stainless Flat Saddle HBFS1
HB2WMB Matte Black 9/16" 3/8" - 16 Sold Separately
2-1/2" Long See Page 91
Minimum Order: 1 Each. Hanger Bolt
FHC Elysian Series
Post Mounted Handrail Bracket Mounting Screws

- Adjustable Stem Height Included
- Swivel Saddle Ideal for Stair and Ramp Installations C L
- For 1-1/2" - 2" Diameter Handrail 3-1/8"
- Includes Adapter for Round or Flat Post
- Includes (2) #10-32 Thread Cutting Screws
- 316 Grade Stainless Steel 2-1/4" Standard
1-5/8" Minimum
3-3/8" Max

C L 1"
ITEM NO. FINISH Includes Flat
HB2PBS Brushed Stainless and Coped
HB2PPS Polished Stainless Adapter for
HB2PMB Matte Black 9/16" 1.9" O.D. Post Flat Saddle HBFS1
With 3/8" - 16
Minimum Order: 1 Each. Mounting Stud Sold Separately
See Page 91
