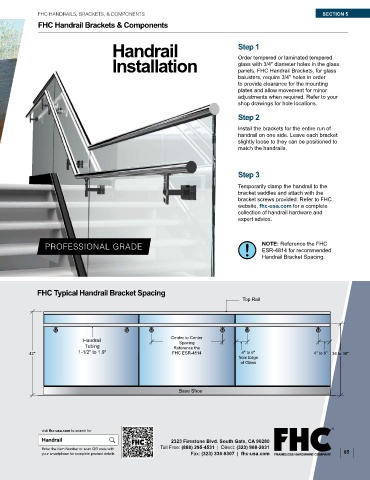

Page 99 - FHC FGR24R Architectural Railing Systems

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Brackets & Components

Handrail Step 1

Installation Order tempered or laminated tempered
glass with 3/4" diameter holes in the glass
panels. FHC Handrail Brackets, for glass
balusters, require 3/4" holes in order
to provide clearance for the mounting
plates and allow movement for minor
adjustments when required. Refer to your
shop drawings for hole locations.
Step 2

Install the brackets for the entire run of
handrail on one side. Leave each bracket
slightly loose to they can be positioned to
match the handrails.

Step 3

Temporarily clamp the handrail to the
bracket saddles and attach with the
bracket screws provided. Refer to FHC
website, fhc-usa.com for a complete
collection of handrail hardware and
expert advice.

PROFESSIONAL GRADE NOTE: Reference the FHC
ESR-4814 for recommended
Handrail Bracket Spacing.

FHC Typical Handrail Bracket Spacing
Top Rail

Center to Center
Handrail
Spacing
Tubing Reference the
42" 1-1/2" to 1.9" FHC ESR-4814 4" to 6" 4" to 6" 34 to 38"
from Edge
of Glass

Base Shoe
