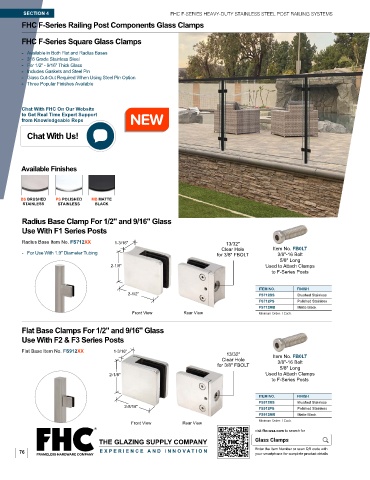

Page 90 - FHC FGR24R Architectural Railing Systems

SECTION 4 FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS

FHC F-Series Railing Post Components Glass Clamps

FHC F-Series Square Glass Clamps

- Available in Both Flat and Radius Bases
- 316 Grade Stainless Steel
- For 1/2" - 9/16" Thick Glass
- Includes Gaskets and Steel Pin
- Glass Cut-Out Required When Using Steel Pin Option
- Three Popular Finishes Available

Chat With FHC On Our Website
to Get Real Time Expert Support
from Knowledgeable Reps

Chat With Us!

Available Finishes

BS BRUSHED PS POLISHED MB MATTE
STAINLESS STAINLESS BLACK

Radius Base Clamp For 1/2" and 9/16" Glass
Use With F1 Series Posts

Radius Base Item No. FS712XX 1-3/16" 13/32"
Clear Hole Item No. FB0LT
- For Use With 1.9" Diameter Tubing for 3/8" FBOLT 3/8"-16 Bolt
5/8" Long
2-1/8" Used to Attach Clamps
to F-Series Posts

ITEM NO. FINISH
2-1/2" FS712BS Brushed Stainless
FS712PS Polished Stainless
FS712MB Matte Black
Front View Rear View Minimum Order: 1 Each.

Flat Base Clamps For 1/2" and 9/16" Glass
Use With F2 & F3 Series Posts
Flat Base Item No. FS912XX 1-3/16"
13/32" Item No. FB0LT
Clear Hole
3/8"-16 Bolt
for 3/8" FBOLT
5/8" Long
2-1/8" Used to Attach Clamps
to F-Series Posts

ITEM NO. FINISH
FS912BS Brushed Stainless
2-5/16"
FS912PS Polished Stainless
FS912MB Matte Black
Minimum Order: 1 Each.
Front View Rear View
visit fhc-usa.com to search for
Glass Clamps
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
76 EXPERIENCE AND INNOV A TION your smartphone for complete product details
