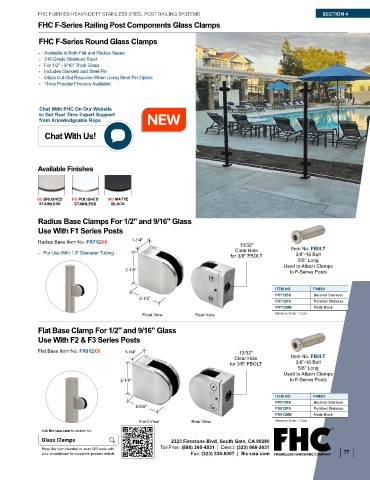

Page 91 - FHC FGR24R Architectural Railing Systems

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4

FHC F-Series Railing Post Components Glass Clamps

FHC F-Series Round Glass Clamps

- Available in Both Flat and Radius Bases
- 316 Grade Stainless Steel
- For 1/2" - 9/16" Thick Glass
- Includes Gaskets and Steel Pin
- Glass Cut-Out Required When Using Steel Pin Option
- Three Popular Finishes Available

Chat With FHC On Our Website
to Get Real Time Expert Support
from Knowledgeable Reps

Chat With Us!

Available Finishes

BS BRUSHED PS POLISHED MB MATTE
STAINLESS STAINLESS BLACK

Radius Base Clamps For 1/2" and 9/16" Glass
Use With F1 Series Posts
1-1/4"
Radius Base Item No. FR712XX
13/32"
Clear Hole Item No. FB0LT
- For Use With 1.9" Diameter Tubing
for 3/8" FBOLT 3/8"-16 Bolt
5/8" Long
Used to Attach Clamps
2-1/8"
to F-Series Posts
ITEM NO. FINISH
FR712BS Brushed Stainless
2-1/2"
FR712PS Polished Stainless
FR712MB Matte Black
Front View Rear View Minimum Order: 1 Each.

Flat Base Clamp For 1/2" and 9/16" Glass
Use With F2 & F3 Series Posts
Flat Base Item No. FR912XX 1-1/4" 13/32"
Clear Hole Item No. FB0LT
for 3/8" FBOLT 3/8"-16 Bolt
5/8" Long
Used to Attach Clamps
2-1/8" to F-Series Posts

ITEM NO. FINISH
FR912BS Brushed Stainless
2-3/8"
FR912PS Polished Stainless
FR912MB Matte Black
Front View Rear View Minimum Order: 1 Each.
visit fhc-usa.com to search for
Glass Clamps 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 77
