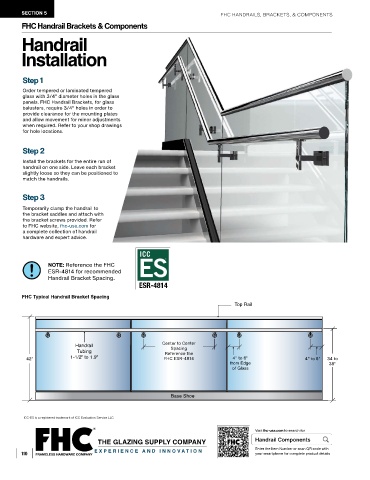

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Brackets & Components

Handrail

Installation

Step 1
Order tempered or laminated tempered
glass with 3/4" diameter holes in the glass
panels. FHC Handrail Brackets, for glass
balusters, require 3/4" holes in order to
provide clearance for the mounting plates
and allow movement for minor adjustments
when required. Refer to your shop drawings
for hole locations.

Step 2
Install the brackets for the entire run of
handrail on one side. Leave each bracket
slightly loose so they can be positioned to
match the handrails.

Step 3
Temporarily clamp the handrail to
the bracket saddles and attach with
the bracket screws provided. Refer
to FHC website, fhc-usa.com for
a complete collection of handrail
hardware and expert advice.

ICC
NOTE: Reference the FHC
ESR-4814 for recommended
Handrail Bracket Spacing.
ESR-4814

FHC Typical Handrail Bracket Spacing
Top Rail

Center to Center
Handrail Spacing
Tubing Reference the
42" 1-1/2" to 1.9" FHC ESR-4814 4" to 6" 4" to 6" 34 to
from Edge 38"
of Glass

Base Shoe

ICC-ES is a registered trademark of ICC Evaluation Service LLC.
