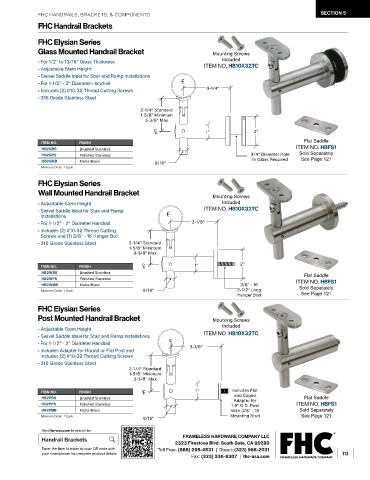

Page 115 - FGR26-Frameless-Glass-Railing

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Brackets

FHC Elysian Series
Glass Mounted Handrail Bracket Mounting Screws
- For 1/2" to 13/16" Glass Thickness Included
- Adjustable Stem Height ITEM NO. HB10X32TC
- Swivel Saddle Ideal for Stair and Ramp Installations
- For 1-1/2" - 2" Diameter Handrail C L
- Includes (2) #10-32 Thread Cutting Screws 3-1/4"
- 316 Grade Stainless Steel

2-1/4" Standard
1-5/8" Minimum
3-3/8" Max
C L 1" 2"

ITEM NO. FINISH Flat Saddle
HB2GBS Brushed Stainless ITEM NO. HBFS1
HB2GPS Polished Stainless 3/4" Diameter Hole Sold Separately
HB2GMB Matte Black 9/16" In Glass Required See Page 121
Minimum Order: 1 Each.

FHC Elysian Series
Wall Mounted Handrail Bracket
Mounting Screws
- Adjustable Stem Height Included
- Swivel Saddle Ideal for Stair and Ramp ITEM NO. HB10X32TC
Installations C L
- For 1-1/2" - 2" Diameter Handrail 3-1/8"
- Includes (2) #10-32 Thread Cutting
Screws and (1) 3/8" - 16 Hanger Bolt
- 316 Grade Stainless Steel 2-1/4" Standard
1-5/8" Minimum
3-3/8" Max
ITEM NO. FINISH C L 1" 2"
HB2WBS Brushed Stainless Flat Saddle
HB2WPS Polished Stainless ITEM NO. HBFS1
HB2WMB Matte Black 3/8" - 16
9/16" 2-1/2" Long Sold Separately
Minimum Order: 1 Each.
Hanger Bolt See Page 121
FHC Elysian Series
Post Mounted Handrail Bracket Mounting Screws

- Adjustable Stem Height Included
- Swivel Saddle Ideal for Stair and Ramp Installations ITEM NO. HB10X32TC
- For 1-1/2" - 2" Diameter Handrail C L
- Includes Adapter for Round or Flat Post and 3-1/8"
Includes (2) #10-32 Thread Cutting Screws
- 316 Grade Stainless Steel
2-1/4" Standard
1-5/8" Minimum
3-3/8" Max
ITEM NO. FINISH C L 1" Includes Flat
and Coped
HB2PBS Brushed Stainless Adapter for Flat Saddle
HB2PPS Polished Stainless 1.9" O.D. Post ITEM NO. HBFS1
HB2PMB Matte Black With 3/8" - 16 Sold Separately
Minimum Order: 1 Each. Mounting Stud See Page 121
9/16"
