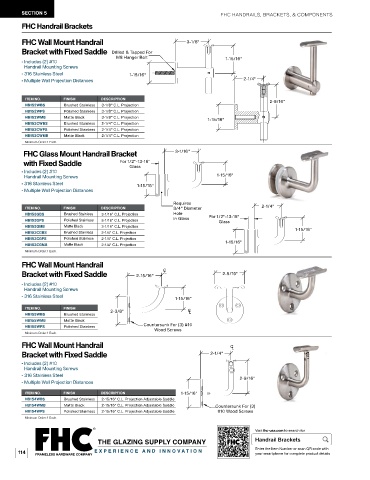

Page 116 - FGR26-Frameless-Glass-Railing

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Brackets

FHC Wall Mount Handrail 3-1/8"
Bracket with Fixed Saddle Drilled & Tapped For
M8 Hanger Bolt 1-15/16"
- Includes (2) #10
Handrail Mounting Screws
- 316 Stainless Steel 1-15/16"
- Multiple Wall Projection Distances 2-1/4"

ITEM NO. FINISH DESCRIPTION 2-9/16"
HB152WBS Brushed Stainless 3-1/8" C.L. Projection
HB152WPS Polished Stainless 3-1/8" C.L. Projection
HB152WMB Matte Black 3-1/8" C.L. Projection 1-15/16"
HB152CWBS Brushed Stainless 2-1/4" C.L. Projection
HB152CWPS Polished Stainless 2-1/4" C.L. Projection
HB152CWMB Matte Black 2-1/4" C.L. Projection
Minimum Order:1 Each.
FHC Glass Mount Handrail Bracket 3-1/16"
with Fixed Saddle For 1/2"-13-16"
Glass
- Includes (2) #10
Handrail Mounting Screws 1-15/16"
- 316 Stainless Steel 1-15/16"
- Multiple Wall Projection Distances

Requires
ITEM NO. FINISH DESCRIPTION 3/4" Diameter 2-1/4"
HB153GBS Brushed Stainless 3-1/16" C.L. Projection Hole For 1/2"-13-16"
HB153GPS Polished Stainless 3-1/16" C.L. Projection in Glass Glass
HB153GMB Matte Black 3-1/16" C.L. Projection 1-15/16"
HB153CGBS Brushed Stainless 2-1/4" C.L. Projection
HB153CGPS Polished Stainless 2-1/4" C.L. Projection 1-15/16"
HB153CGMB Matte Black 2-1/4" C.L. Projection
Minimum Order:1 Each.
FHC Wall Mount Handrail
Bracket with Fixed Saddle 2-15/16" C L 2-9/16"
- Includes (2) #10
Handrail Mounting Screws
- 316 Stainless Steel 1-15/16"

ITEM NO. FINISH 2-3/8" C L
HB155WBS Brushed Stainless
HB155WMB Matte Black
HB155WPS Polished Stainless Countersunk For (3) #10
Wood Screws
Minimum Order:1 Each.
FHC Wall Mount Handrail C L
Bracket with Fixed Saddle 2-1/4"
- Includes (2) #10
Handrail Mounting Screws
- 316 Stainless Steel 2-9/16"
- Multiple Wall Projection Distances
ITEM NO. FINISH DESCRIPTION 1-15/16"
HB154WBS Brushed Stainless 2-15/16" C.L. Projection Adjustable Saddle
HB154WMB Matte Black 2-15/16" C.L. Projection Adjustable Saddle Countersunk For (3)
HB154WPS Polished Stainless 2-15/16" C.L. Projection Adjustable Saddle #10 Wood Screws
Minimum Order:1 Each.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Handrail Brackets

114 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
