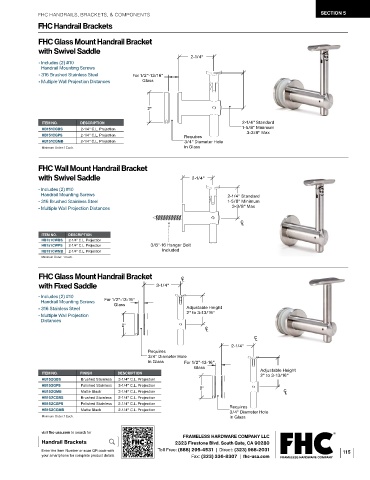

Page 117 - FGR26-Frameless-Glass-Railing

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Brackets

FHC Glass Mount Handrail Bracket
with Swivel Saddle
2-1/4"
- Includes (2) #10
Handrail Mounting Screws
- 316 Brushed Stainless Steel For 1/2"-13/16"
- Multiple Wall Projection Distances Glass

2"

ITEM NO. DESCRIPTION 2-1/4" Standard
HB151CGBS 2-1/4" C.L. Projection 1-5/8" Minimum
3-3/8" Max
HB151CGPS 2-1/4" C.L. Projection Requires
HB151CGMB 2-1/4" C.L. Projection 3/4" Diameter Hole
Minimum Order:1 Each. in Glass

FHC Wall Mount Handrail Bracket
with Swivel Saddle 2-1/4"
- Includes (2) #10
Handrail Mounting Screws 2-1/4" Standard
- 316 Brushed Stainless Steel 1-5/8" Minimum
- Multiple Wall Projection Distances 3-3/8" Max

C L

ITEM NO. DESCRIPTION
HB151CWBS 2-1/4" C.L. Projection
HB151CWPS 2-1/4" C.L. Projection 3/8"-16 Hanger Bolt
HB151CWMB 2-1/4" C.L. Projection Included
Minimum Order: 1 Each.

FHC Glass Mount Handrail Bracket C L
with Fixed Saddle 3-1/4"
- Includes (2) #10
Handrail Mounting Screws For 1/2"-13-16"
Glass
- 316 Stainless Steel Adjustable Height
- Multiple Wall Projection 2" to 3-13/16"
Distances
2"
C L
C L
2-1/4"
Requires
3/4" Diameter Hole
in Glass For 1/2"-13-16"
Glass Adjustable Height
ITEM NO. FINISH DESCRIPTION 2" to 3-13/16"
HB152GBS Brushed Stainless 3-1/4" C.L. Projection
HB152GPS Polished Stainless 3-1/4" C.L. Projection 2"
HB152GMB Matte Black 3-1/4" C.L. Projection C L
HB152CGBS Brushed Stainless 2-1/4" C.L. Projection
HB152CGPS Polished Stainless 2-1/4" C.L. Projection Requires
HB152CGMB Matte Black 2-1/4" C.L. Projection 3/4" Diameter Hole
Minimum Order:1 Each. in Glass

visit fhc-usa.com to search for
FRAMELESS HARDWARE COMPANY LLC
Handrail Brackets 2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031 115
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com
