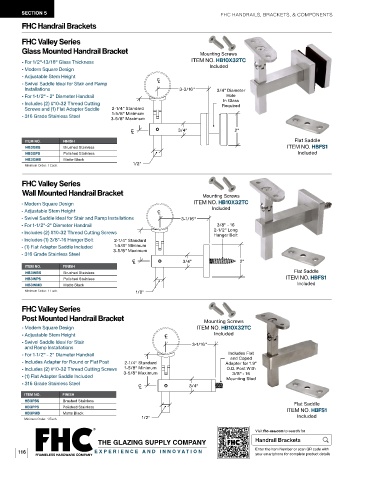

Page 118 - FGR26-Frameless-Glass-Railing

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Brackets

FHC Valley Series
Glass Mounted Handrail Bracket Mounting Screws

- For 1/2"-13/16" Glass Thickness ITEM NO. HB10X32TC
- Modern Square Design Included
- Adjustable Stem Height C
- Swivel Saddle Ideal for Stair and Ramp L
Installations 3-3/16" 3/4" Diameter
- For 1-1/2" - 2" Diameter Handrail Hole
In Glass
- Includes (2) #10-32 Thread Cutting Required
Screws and (1) Flat Adapter Saddle 2-1/4" Standard
1-5/8" Minimum
- 316 Grade Stainless Steel 3-5/8" Maximum
C L 3/4" 2"

ITEM NO. FINISH Flat Saddle
HB3GBS Brushed Stainless ITEM NO. HBFS1
HB3GPS Polished Stainless Included
HB3GMB Matte Black
1/2"
Minimum Order: 1 Each.

FHC Valley Series
Wall Mounted Handrail Bracket Mounting Screws
- Modern Square Design ITEM NO. HB10X32TC
- Adjustable Stem Height C L Included
- Swivel Saddle Ideal for Stair and Ramp Installations 3-1/16"
- For 1-1/2"-2" Diameter Handrail 3/8" - 16
- Includes (2) #10-32 Thread Cutting Screws 2-1/2" Long
Hanger Bolt
- Includes (1) 3/8"-16 Hanger Bolt 2-1/4" Standard
- (1) Flat Adapter Saddle Included 1-5/8" Minimum
- 316 Grade Stainless Steel 3-5/8" Maximum
C L 3/4" 2"
ITEM NO. FINISH
HB3WBS Brushed Stainless Flat Saddle
HB3WPS Polished Stainless ITEM NO. HBFS1
HB3WMB Matte Black Included
Minimum Order: 1 Each. 1/2"

FHC Valley Series
Post Mounted Handrail Bracket Mounting Screws

- Modern Square Design ITEM NO. HB10X32TC
- Adjustable Stem Height C L Included
- Swivel Saddle Ideal for Stair
and Ramp Installations 3-1/16"
- For 1-1/2" - 2" Diameter Handrail Includes Flat
and Coped
- Includes Adapter for Round or Flat Post 2-1/4" Standard Adapter for 1.9"
- Includes (2) #10-32 Thread Cutting Screws 1-5/8" Minimum O.D. Post With
3/8" - 16
- (1) Flat Adapter Saddle Included 3-5/8" Maximum Mounting Stud
- 316 Grade Stainless Steel C L 3/4"

ITEM NO. FINISH
HB3PBS Brushed Stainless Flat Saddle
HB3PPS Polished Stainless ITEM NO. HBFS1
HB3PMB Matte Black
1/2" Included
Minimum Order: 1 Each.
