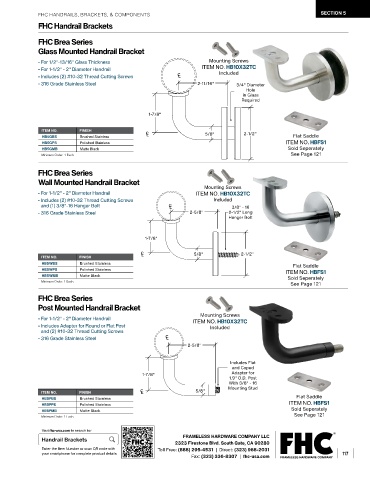

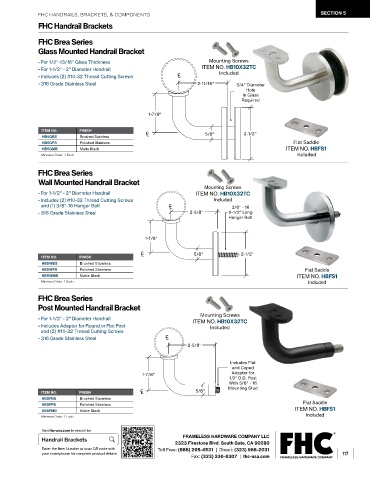

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Brackets

FHC Brea Series
Glass Mounted Handrail Bracket
- For 1/2"-13/16" Glass Thickness Mounting Screws
- For 1-1/2" - 2" Diameter Handrail ITEM NO. HB10X32TC
Included
- Includes (2) #10-32 Thread Cutting Screws C L
- 316 Grade Stainless Steel 2-11/16" 3/4" Diameter
Hole
in Glass
Required

1-7/8"

ITEM NO. FINISH C 5/8" 2-1/2"
HB5GBS Brushed Stainless L
HB5GPS Polished Stainless Flat Saddle
HB5GMB Matte Black ITEM NO. HBFS1
Included
Minimum Order: 1 Each.
FHC Brea Series
Wall Mounted Handrail Bracket
Mounting Screws
- For 1-1/2" - 2" Diameter Handrail ITEM NO. HB10X32TC
- Includes (2) #10-32 Thread Cutting Screws Included
and (1) 3/8"-16 Hanger Bolt C L 3/8" - 16
- 316 Grade Stainless Steel 2-5/8" 2-1/2" Long
Hanger Bolt

1-7/8"

C L 5/8" 2-1/2"
ITEM NO. FINISH
HB5WBS Brushed Stainless
HB5WPS Polished Stainless Flat Saddle
HB5WMB Matte Black ITEM NO. HBFS1
Minimum Order: 1 Each. Included
FHC Brea Series
Post Mounted Handrail Bracket
Mounting Screws
- For 1-1/2" - 2" Diameter Handrail ITEM NO. HB10X32TC
- Includes Adapter for Round or Flat Post Included
and (2) #10-32 Thread Cutting Screws
- 316 Grade Stainless Steel C L
2-5/8"

Includes Flat
and Coped
1-7/8" Adapter for
1.9" O.D. Post
With 3/8" - 16
Mounting Stud
ITEM NO. FINISH C L 5/8"
HB5PBS Brushed Stainless
HB5PPS Polished Stainless Flat Saddle
HB5PMB Matte Black ITEM NO. HBFS1
Included
Minimum Order: 1 Each.
