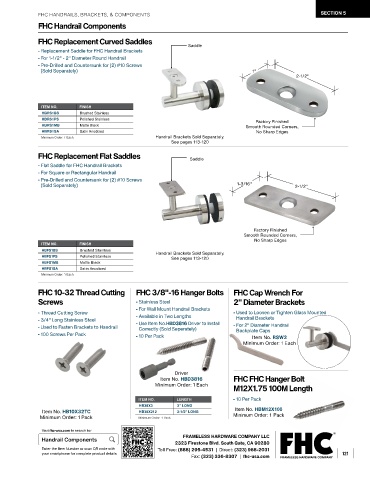

Page 123 - FGR26-Frameless-Glass-Railing

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Components

FHC Replacement Curved Saddles Saddle
- Replacement Saddle for FHC Handrail Brackets
- For 1-1/2" - 2" Diameter Round Handrail
- Pre-Drilled and Countersunk for (2) #10 Screws
(Sold Separately) 1"
2-1/2"

ITEM NO. FINISH
HBRS1BS Brushed Stainless
HBRS1PS Polished Stainless Factory Finished
HBRS1MB Matte Black Smooth Rounded Corners,
HBRS1SA Satin Anodized No Sharp Edges
Handrail Brackets Sold Separately.
Minimum Order: 1 Each.
See pages 113-120
FHC Replacement Flat Saddles Saddle
- Flat Saddle for FHC Handrail Brackets
- For Square or Rectangular Handrail
- Pre-Drilled and Countersunk for (2) #10 Screws
(Sold Separately) 1-3/16" 2-1/2"

Factory Finished
Smooth Rounded Corners,
No Sharp Edges
ITEM NO. FINISH
HBFS1BS Brushed Stainless Handrail Brackets Sold Separately.
HBFS1PS Polished Stainless See pages 113-120
HBFS1MB Matte Black
HBFS1SA Satin Anodized
Minimum Order: 1 Each.

FHC 10-32 Thread Cutting FHC 3/8"-16 Hanger Bolts FHC Cap Wrench For
Screws - Stainless Steel 2" Diameter Brackets
- For Wall Mount Handrail Brackets
- Thread Cutting Screw - Available in Two Lengths - Used to Loosen or Tighten Glass Mounted
- 3/4" Long Stainless Steel - Use Item No.HBD3816 Driver to Install Handrail Brackets
- For 2" Diameter Handrail
- Used to Fasten Brackets to Handrail Correctly (Sold Seperately) Backplate Caps
- 100 Screws Per Pack - 10 Per Pack Item No. RSW2
Minimum Order: 1 Each

Driver
Item No. HBD3816 FHC FHC Hanger Bolt
Minimum Order: 1 Each
M12X1.75 100M Length
ITEM NO. LENGTH - 10 Per Pack
HB38X3 3" LONG
Item No. HB10X32TC HB38X212 2-1/2" LONG Item No. HBM12X100
Minimum Order: 1 Pack Minimum Order: 1 Pack. Minimum Order: 1 Pack

Visit fhc-usa.com to search for
Handrail Components FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 121
Fax: (323) 336-8307 | fhc-usa.com
