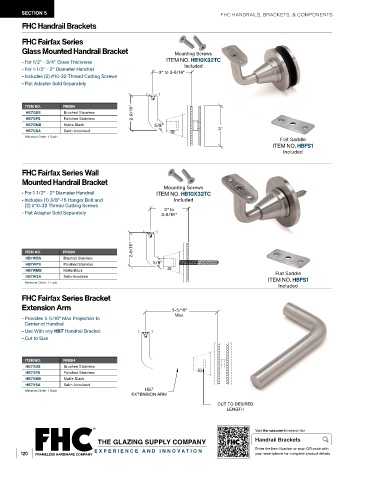

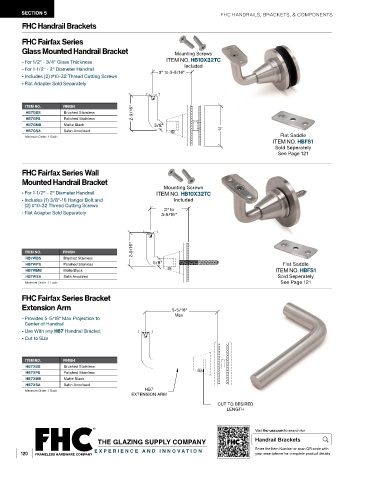

Page 122 - FGR26-Frameless-Glass-Railing

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Brackets

FHC Fairfax Series
Glass Mounted Handrail Bracket Mounting Screws
- For 1/2" - 3/4" Glass Thickness ITEM NO. HB10X32TC
- For 1-1/2" - 2" Diameter Handrail 3" to 3-5/16" Included
- Includes (2) #10-32 Thread Cutting Screws
- Flat Adapter Sold Separately

ITEM NO. FINISH
HB7GBS Brushed Stainless 2-9/16"
HB7GPS Polished Stainless
HB7GMB Matte Black 5/8"
HB7GSA Satin Anodized 3"
Minimum Order: 1 Each.
Flat Saddle
ITEM NO. HBFS1
Included

FHC Fairfax Series Wall
Mounted Handrail Bracket
Mounting Screws
- For 1-1/2" - 2" Diameter Handrail ITEM NO. HB10X32TC
- Includes (1) 3/8"-16 Hanger Bolt and Included
(2) #10-32 Thread Cutting Screws
3" to
- Flat Adapter Sold Separately 3-5/16"

2-9/16"
ITEM NO. FINISH
HB7WBS Brushed Stainless
HB7WPS Polished Stainless 5/8"
HB7WMB Matte Black Flat Saddle
HB7WSA Satin Anodized ITEM NO. HBFS1
Minimum Order: 1 Each.
Included
FHC Fairfax Series Bracket
Extension Arm 5-5/16"
Max.
- Provides 5-5/16" Max Projection to
Center of Handrail
- Use With any HB7 Handrail Bracket
- Cut to Size

ITEM NO. FINISH
HB7XBS Brushed Stainless
HB7XPS Polished Stainless
HB7XMB Matte Black
HB7XSA Satin Anodized
Minimum Order: 1 Each. HB7
EXTENSION ARM
CUT TO DESIRED
LENGTH

Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Handrail Brackets

120 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
