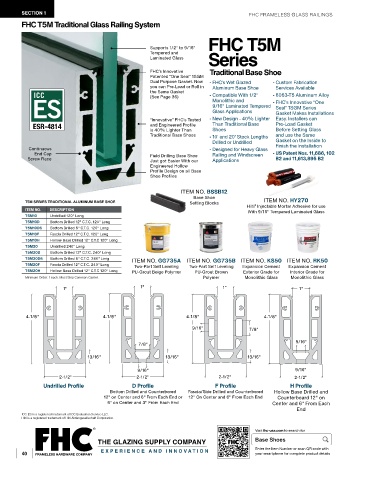

Page 42 - FGR26-Frameless-Glass-Railing

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC T5M Traditional Glass Railing System

FHC T5M
Supports 1/2" to 9/16"
Tempered and
Laminated Glass Series

FHC’s Innovative Traditional Base Shoe
Patented “One Seal” 1SGM
Dual Purpose Gasket. Now - FHC’s Wet Glazed - Custom Fabrication
you can Pre-Load or Roll in Aluminum Base Shoe Services Available
the Same Gasket
ICC (See Page 36) - Compatible With 1/2" - 6063-T5 Aluminum Alloy
Monolithic and - FHC’s Innovative “One
9/16" Laminated Tempered Seal” 1SGM Series
Glass Applications Gasket Makes Installations
“Innovative” FHC’s Tested - New Design - 40% Lighter Easy. Installers can
ESR-4814 and Engineered Profile Than Traditional Base Pre-Load Gasket
Shoes
Before Setting Glass
is 40% Lighter Than
Traditional Base Shoes - 10' and 20' Stock Lengths and use the Same
Drilled or Undrilled Gasket on the Inside to
Continuous - Designed for Heavy Glass Finish the Installation
End Cap Field Drilling Base Shoe Railing and Windscreen - US Patent Nos. 11,686, 102
Screw Race Just got Easier With our Applications B2 and 11,613,895 B2
Engineered Hollow
Profile Design on all Base
Shoe Profiles

ITEM NO. BSSB12
Base Shoe
T5M SERIES TRADITIONAL ALUMINUM BASE SHOE Setting Blocks ® ITEM NO. HY270
ITEM NO. DESCRIPTION Hilti Injectable Mortar Adhesive for use
With 9/16" Tempered Laminated Glass
T5M10 Undrilled 120" Long
T5M10D Bottom Drilled 12" C.T.C. 120" Long
T5M10D6 Bottom Drilled 6" C.T.C. 120" Long
T5M10F Fascia Drilled 12" C.T.C. 120" Long
T5M10H Hollow Base Drilled 12" C.T.C 120" Long
T5M20 Undrilled 240" Long
T5M20D Bottom Drilled 12" C.T.C. 240" Long
T5M20D6 Bottom Drilled 6" C.T.C. 240" Long ITEM NO. GG735A ITEM NO. GG735B ITEM NO. KS50 ITEM NO. RK50
T5M20F Fascia Drilled 12" C.T.C. 240" Long Two-Part Self Leveling Two-Part Self Leveling Expansion Cement Expansion Cement
T5M20H Hollow Base Drilled 12" C.T.C 120" Long PU-Grout Beige Polymer PU-Grout Brown Exterior Grade for Interior Grade for
Minimum Order: 1 each. Must Ship Common Carrier. Polymer Monolithic Glass Monolithic Glass
1" 1" 1" 1"

4-1/8" 4-1/8" 4-1/8" 4-1/8"
9/16" 7/8"

9/16"
7/8"
13/16" 13/16" 13/16"

9/16" 9/16"
2-1/2" 2-1/2" 2-1/2" 2-1/2"
Undrilled Profile D Profile F Profile H Profile
Bottom Drilled and Counterbored Fascia/Side Drilled and Counterbored Hollow Base Drilled and
12" on Center and 6" From Each End or 12" On Center and 6" From Each End Counterboard 12" on
6" on Center and 3" From Each End Center and 6" From Each
End
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
Hilti is a registered trademark of Hilti Aktiengesellschaft Corporation.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Base Shoes

40 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
