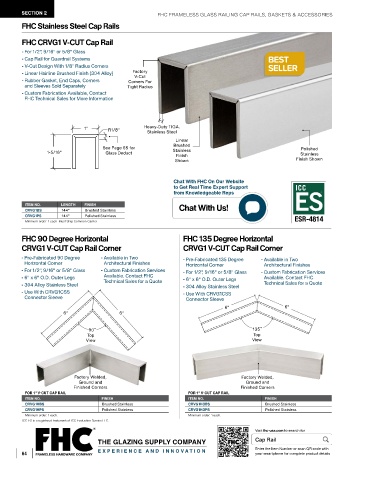

Page 66 - FGR26-Frameless-Glass-Railing

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Stainless Steel Cap Rails

FHC CRVG1 V-CUT Cap Rail
- For 1/2", 9/16" or 5/8" Glass
- Cap Rail for Guardrail Systems
- V-Cut Design With 1/8" Radius Corners
- Linear Hairline Brushed Finish (304 Alloy) Factory
V-Cut
- Rubber Gasket, End Caps, Corners Corners For
and Sleeves Sold Separately Tight Radius
- Custom Fabrication Available, Contact
FHC Technical Sales for More Information

1" R1/8" Heavy-Duty 11GA.
Stainless Steel
Linear
Brushed
See Page 65 for Polished
1-5/16" Glass Deduct Stainless Stainless
Finish
Shown Finish Shown

Chat With FHC On Our Website
to Get Real Time Expert Support ICC
from Knowledgeable Reps

ITEM NO. LENGTH FINISH Chat With Us!
CRVG1BS 144" Brushed Stainless
CRVG1PS 144" Polished Stainless
Minimum order: 1 each. Must Ship Common Carrier ESR-4814

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRVG1 V-CUT Cap Rail Corner CRVG1 V-CUT Cap Rail Corner
- Pre-Fabricated 90 Degree - Available in Two - Pre-Fabricated 135 Degree - Available in Two
Horizontal Corner Architectural Finishes Horizontal Corner Architectural Finishes
- For 1/2", 9/16" or 5/8" Glass - Custom Fabrication Services - For 1/2", 9/16" or 5/8" Glass - Custom Fabrication Services
- 6" x 6" O.D. Outer Legs Available. Contact FHC - 6" x 6" O.D. Outer Legs Available. Contact FHC
Technical Sales for a Quote
- 304 Alloy Stainless Steel - 304 Alloy Stainless Steel Technical Sales for a Quote
- Use With CRVG1CSS - Use With CRVG1CSS
Connector Sleeve Connector Sleeve
6" 6"
6" 6"

90˚ 135˚
Top Top
View View

Factory Welded, Factory Welded,
Ground and Ground and
Finished Corners Finished Corners
FOR 1" V-CUT CAP RAIL FOR 1" V-CUT CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CRVG1HBS Brushed Stainless CRVG1H3BS Brushed Stainless
CRVG1HPS Polished Stainless CRVG1H3PS Polished Stainless
Minimum order: 1 each. Minimum order: 1 each.
