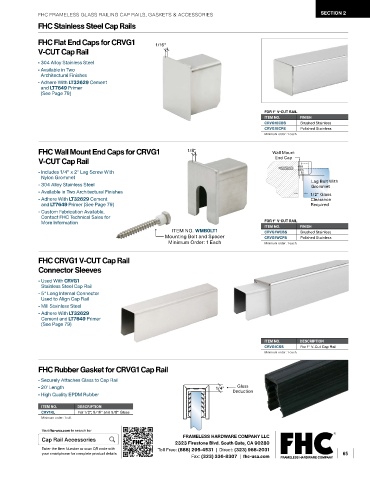

Page 67 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2
FHC Stainless Steel Cap Rails

FHC Flat End Caps for CRVG1 1/16"
V-CUT Cap Rail
- 304 Alloy Stainless Steel
- Available in Two
Architectural Finishes
- Adhere With LT32629 Cement
and LT7649 Primer
(See Page 79)

FOR 1" V-CUT RAIL
ITEM NO. FINISH
CRVG1ECBS Brushed Stainless
CRVG1ECPS Polished Stainless
Minimum order: 1 each.

FHC Wall Mount End Caps for CRVG1 1/8" Wall Mount
V-CUT Cap Rail End Cap

- Includes 1/4" x 2" Lag Screw With
Nylon Grommet
- 304 Alloy Stainless Steel Lag Bolt With
Grommet
- Available in Two Architectural Finishes 1/2" Glass

- Adhere With LT32629 Cement Clearance
and LT7649 Primer (See Page 79) Required
- Custom Fabrication Available,
Contact FHC Technical Sales for
More Information FOR 1" V-CUT RAIL
ITEM NO. FINISH
ITEM NO. WMB0LT1 CRVG1WCBS Brushed Stainless
Mounting Bolt and Spacer CRVG1WCPS Polished Stainless
Minimum Order: 1 Each Minimum order: 1 each.

FHC CRVG1 V-CUT Cap Rail
Connector Sleeves
- Used With CRVG1
Stainless Steel Cap Rail
- 5" Long Internal Connector
Used to Align Cap Rail
- Mill Stainless Steel
- Adhere With LT32629
Cement and LT7649 Primer
(See Page 79)

ITEM NO. DESCRIPTION
CRVG1CSS For 1" V-Cut Cap Rail
Minimum order: 1 each.

FHC Rubber Gasket for CRVG1 Cap Rail

- Securely Attaches Glass to Cap Rail
- 20' Length 1/4" Glass
- High Quality EPDM Rubber Deduction
ITEM NO. DESCRIPTION
CRV1RL For 1/2", 9/16" and 5/8" Glass
Minimum order: 1 roll.
Visit fhc-usa.com to search for
Cap Rail Accessories FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 65
Fax: (323) 336-8307 | fhc-usa.com
