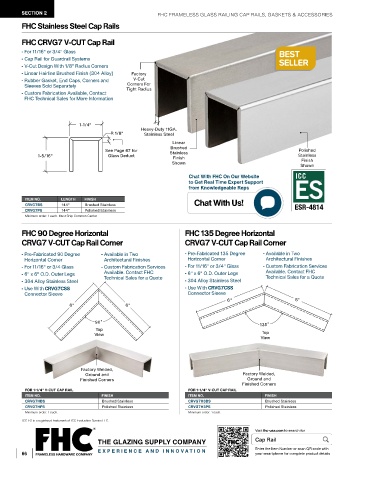

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Stainless Steel Cap Rails

FHC CRVG7 V-CUT Cap Rail
- For 11/16" or 3/4" Glass
- Cap Rail for Guardrail Systems
- V-Cut Design With 1/8" Radius Corners
- Linear Hairline Brushed Finish (304 Alloy) Factory
- Rubber Gasket, End Caps, Corners and V-Cut
Sleeves Sold Separately Corners For
- Custom Fabrication Available, Contact Tight Radius
FHC Technical Sales for More Information

1-1/4"
Heavy-Duty 11GA.
R 1/8" Stainless Steel
Linear
Brushed
See Page 67 for Stainless Polished
1-5/16" Glass Deduct Finish Stainless
Shown Finish
Shown
Chat With FHC On Our Website ICC
to Get Real Time Expert Support
from Knowledgeable Reps

ITEM NO. LENGTH FINISH
CRVG7BS 144" Brushed Stainless Chat With Us! ESR-4814
CRVG7PS 144" Polished Stainless
Minimum order: 1 each. Must Ship Common Carrier

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRVG7 V-CUT Cap Rail Corner CRVG7 V-CUT Cap Rail Corner

- Pre-Fabricated 90 Degree - Available in Two - Pre-Fabricated 135 Degree - Available in Two
Horizontal Corner Architectural Finishes Horizontal Corner Architectural Finishes
- For 11/16" or 3/4 Glass - Custom Fabrication Services - For 11/16" or 3/4" Glass - Custom Fabrication Services
- 6" x 6" O.D. Outer Legs Available. Contact FHC - 6" x 6" O.D. Outer Legs Available. Contact FHC
Technical Sales for a Quote
Technical Sales for a Quote
- 304 Alloy Stainless Steel - 304 Alloy Stainless Steel
- Use With CRVG7CSS - Use With CRVG7CSS
Connector Sleeve Connector Sleeve
6" 6"
6" 6"

90˚ 135˚
Top
View Top
View

Factory Welded,
Ground and Factory Welded,
Finished Corners Ground and
Finished Corners
FOR 1-1/4" V-CUT CAP RAIL FOR 1-1/4" V-CUT CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CRVG7HBS Brushed Stainless CRVG7H3BS Brushed Stainless
CRVG7HPS Polished Stainless CRVG7H3PS Polished Stainless
Minimum order: 1 each. Minimum order: 1 each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
Visit fhc-usa.com to search for
Cap Rail
