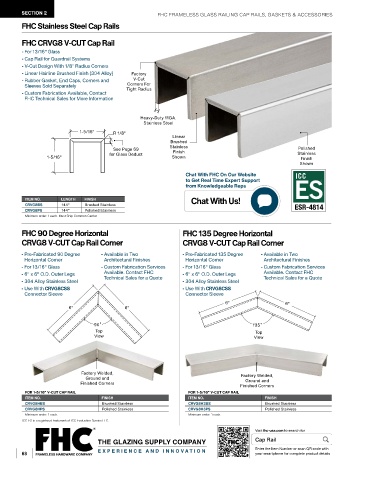

Page 70 - FGR26-Frameless-Glass-Railing

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Stainless Steel Cap Rails

FHC CRVG8 V-CUT Cap Rail
- For 13/16" Glass
- Cap Rail for Guardrail Systems
- V-Cut Design With 1/8" Radius Corners
- Linear Hairline Brushed Finish (304 Alloy) Factory
- Rubber Gasket, End Caps, Corners and V-Cut
Sleeves Sold Separately Corners For
- Custom Fabrication Available, Contact Tight Radius
FHC Technical Sales for More Information

Heavy-Duty 11GA.
Stainless Steel
1-5/16" R 1/8"
Linear
Brushed
See Page 69 Stainless Polished
for Glass Deduct Finish Stainless
1-5/16" Shown Finish
Shown
Chat With FHC On Our Website ICC
to Get Real Time Expert Support
from Knowledgeable Reps

ITEM NO. LENGTH FINISH Chat With Us!
CRVG8BS 144" Brushed Stainless ESR-4814
CRVG8PS 144" Polished Stainless
Minimum order: 1 each. Must Ship Common Carrier

FHC 90 Degree Horizontal FHC 135 Degree Horizontal
CRVG8 V-CUT Cap Rail Corner CRVG8 V-CUT Cap Rail Corner

- Pre-Fabricated 90 Degree - Available in Two - Pre-Fabricated 135 Degree - Available in Two
Horizontal Corner Architectural Finishes Horizontal Corner Architectural Finishes
- For 13/16" Glass - Custom Fabrication Services - For 13/16" Glass - Custom Fabrication Services
- 6" x 6" O.D. Outer Legs Available. Contact FHC - 6" x 6" O.D. Outer Legs Available. Contact FHC
Technical Sales for a Quote
Technical Sales for a Quote
- 304 Alloy Stainless Steel - 304 Alloy Stainless Steel
- Use With CRVG8CSS - Use With CRVG8CSS
Connector Sleeve Connector Sleeve
6" 6"
6" 6"

90˚ 135˚
Top Top
View View

Factory Welded, Factory Welded,
Ground and
Ground and
Finished Corners Finished Corners
FOR 1-5/16" V-CUT CAP RAIL FOR 1-5/16" V-CUT CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH
CRVG8HBS Brushed Stainless CRVG8H3BS Brushed Stainless
CRVG8HPS Polished Stainless CRVG8H3PS Polished Stainless
Minimum order: 1 each. Minimum order: 1 each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
Visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
68 EXPERIENCE AND INNOV A TION your smartphone for complete product details
