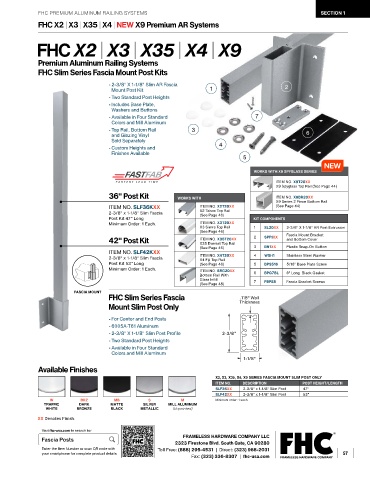

Page 59 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC X2 | X3 | X35 | X4 | NEW X9 Premium AR Systems

FHC X2 | X3 | X35 | X4 | X9

Premium Aluminum Railing Systems
FHC Slim Series Fascia Mount Post Kits

- 2-3/8" X 1-1/8" Slim AR Fascia
Mount Post Kit 1 2
- Two Standard Post Heights
- Includes Base Plate,
Washers and Buttons
- Available in Four Standard 7
Colors and Mill Aluminum
- Top Rail, Bottom Rail 3
and Glazing Vinyl 6
Sold Separately
- Custom Heights and 4
Finishes Available
5

WORKS WITH X9 SPYGLASS SERIES
ITEM NO. X9T20XX
X9 Spyglass Top Rail (See Page 44)
36" Post Kit WORKS WITH ITEM NO. X9BR20XX
X9 Series 2 Piece Bottom Rail
ITEM NO. SLF36KXX ITEM NO. X2T20XX (See Page 44)
2-3/8" x 1-1/8" Slim Fascia X2 Tahoe Top Rail
(See Page 46)
Post Kit 47" Long KIT COMPONENTS
Minimum Order: 1 Each. ITEM NO. X3T20XX
X3 Sierra Top Rail 1 SL20XX 2-3/8" X 1-1/8" AR Post Extrusion
(See Page 46) Fascia Mount Bracket
42" Post Kit ITEM NO. X35T20XX 2 SPF1XX and Bottom Cover
X35 Everest Top Rail
(See Page 46) 3 BN1XX Plastic Snap-On Button
ITEM NO. SLF42KXX
2-3/8" x 1-1/8" Slim Fascia ITEM NO. X4T20XX 4 WSH1 Stainless Steel Washer
X4 Fiji Top Rail
Post Kit 53" Long (See Page 46) 5 BPS516 5/16" Base Plate Screw
Minimum Order: 1 Each. ITEM NO. BRG20XX
Bottom Rail With 6 BPG7BL 6" Long Black Gasket
Glass Infill
(See Page 48) 7 FBPS8 Fascia Bracket Screws
FASCIA MOUNT
FHC Slim Series Fascia .118" Wall
Mount Slim Post Only Thickness

- For Center and End Posts
- 6005A-T61 Aluminum
- 2-3/8" X 1-1/8" Slim Post Profile 2-3/8"
- Two Standard Post Heights
- Available in Four Standard
Colors and Mill Aluminum
1-1/8"
Available Finishes
X2, X3, X35, X4, X9 SERIES FASCIA MOUNT SLIM POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
SLF36XX 2-3/8" x 1-1/8" Slim Post 47"
SLF42XX 2-3/8" x 1-1/8" Slim Post 53"
W BRZ MB S M Minimum order: 1 each.
TRAFFIC DARK MATTE SILVER MILL ALUMINUM
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
Visit fhc-usa.com to search for
Fascia Posts FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
57
your smartphone for complete product details 57
Fax: (323) 336-8307 | fhc-usa.com
