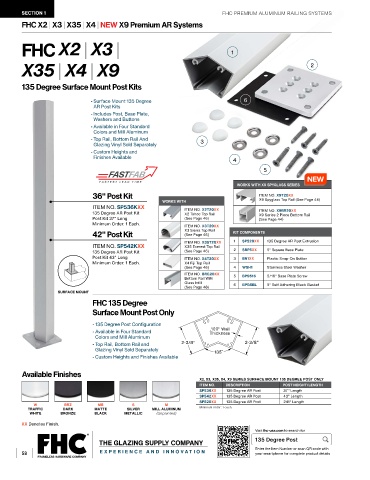

Page 60 - FHC-FARW26-Premium-Aluminum-Railing-Systems

SECTION 1
SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
FHC X2 | X3 | X35 | X4 | NEW X9 Premium AR Systems

FHC X2 | X3 | 1

X35 | X4 | X9 2

135 Degree Surface Mount Post Kits

- Surface Mount 135 Degree 6
AR Post Kits
- Includes Post, Base Plate,
Washers and Buttons
- Available in Four Standard
Colors and Mill Aluminum
- Top Rail, Bottom Rail And
Glazing Vinyl Sold Separately 3
- Custom Heights and
Finishes Available 4
5

WORKS WITH X9 SPYGLASS SERIES
36" Post Kit ITEM NO. X9T20XX
WORKS WITH X9 Spyglass Top Rail (See Page 44)
ITEM NO. SP536KXX ITEM NO. X2T20XX
135 Degree AR Post Kit X2 Tahoe Top Rail ITEM NO. X9BR20XX
X9 Series 2 Piece Bottom Rail
Post Kit 37" Long (See Page 46) (See Page 44)
Minimum Order: 1 Each. ITEM NO. X3T20XX
42" Post Kit X3 Sierra Top Rail KIT COMPONENTS
(See Page 46)
ITEM NO. X35T20XX 1 SP520XX 135 Degree AR Post Extrusion
ITEM NO. SP542KXX X35 Everest Top Rail
135 Degree AR Post Kit (See Page 46) 2 SBP5XX 5" Square Base Plate
Post Kit 43" Long ITEM NO. X4T20XX 3 BN1XX Plastic Snap-On Button
Minimum Order: 1 Each. X4 Fiji Top Rail
(See Page 46) 4 WSH1 Stainless Steel Washer
ITEM NO. BRG20XX
Bottom Rail With 5 BPS516 5/16" Base Plate Screw
Glass Infill 6 BPG5BL 5" Self Adhering Black Gasket
(See Page 48)
SURFACE MOUNT
FHC 135 Degree
Surface Mount Post Only

- 135 Degree Post Configuration
- Available in Four Standard .100" Wall
Thickness
Colors and Mill Aluminum
- Top Rail, Bottom Rail and 2-3/8" 2-3/8"
Glazing Vinyl Sold Separately 135 º
- Custom Heights and Finishes Available

Available Finishes
X2, X3, X35, X4, X9 SERIES SURFACE MOUNT 135 DEGREE POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
SP536XX 135 Degree AR Post 37" Length
SP542XX 135 Degree AR Post 43" Length
SP520XX 135 Degree AR Post 241" Length
W BRZ MB S M
TRAFFIC DARK MATTE SILVER MILL ALUMINUM Minimum order: 1 each.
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY 135 Degree Post
Enter the Item Number or scan QR code with
