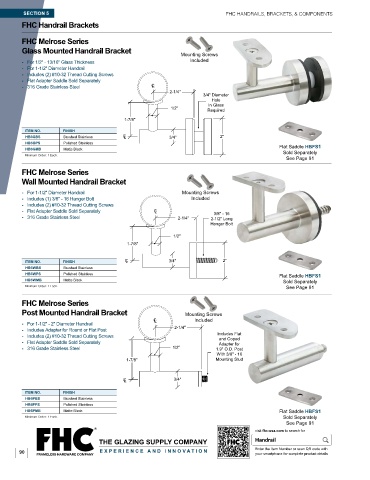

Page 104 - FHC FGR24R Architectural Railing Systems

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Brackets

FHC Melrose Series
Glass Mounted Handrail Bracket
Mounting Screws
Included
- For 1/2" - 13/16" Glass Thickness
- For 1-1/2" Diameter Handrail
- Includes (2) #10-32 Thread Cutting Screws
- Flat Adapter Saddle Sold Separately
- 316 Grade Stainless Steel C L
2-1/4"
3/4" Diameter
Hole
In Glass
1/2"
Required
1-7/8"
ITEM NO. FINISH
HB6GBS Brushed Stainless C L 3/4" 2"
HB6GPS Polished Stainless
HB6GMB Matte Black Flat Saddle HBFS1
Sold Separately
Minimum Order: 1 Each.
See Page 91
FHC Melrose Series
Wall Mounted Handrail Bracket

- For 1-1/2" Diameter Handrail Mounting Screws
- Includes (1) 3/8" - 16 Hanger Bolt Included
- Includes (2) #10-32 Thread Cutting Screws
- Flat Adapter Saddle Sold Separately C L
3/8" - 16
- 316 Grade Stainless Steel 2-1/4" 2-1/2" Long
Hanger Bolt
1/2"
1-7/8"

ITEM NO. FINISH C L 3/4" 2"
HB6WBS Brushed Stainless
HB6WPS Polished Stainless Flat Saddle HBFS1
HB6WMB Matte Black
Sold Separately
Minimum Order: 1 Each. See Page 91

FHC Melrose Series
Post Mounted Handrail Bracket Mounting Screws
C L Included
- For 1-1/2" - 2" Diameter Handrail
2-1/4"
- Includes Adapter for Round or Flat Post
Includes Flat
- Includes (2) #10-32 Thread Cutting Screws
and Coped
- Flat Adapter Saddle Sold Separately
Adapter for
- 316 Grade Stainless Steel 1/2" 1.9" O.D. Post
With 3/8" - 16
1-7/8" Mounting Stud
3/4"
C L
ITEM NO. FINISH
HB6PBS Brushed Stainless
HB6PPS Polished Stainless
HB6PMB Matte Black Flat Saddle HBFS1
Minimum Order: 1 Each. Sold Separately
See Page 91
